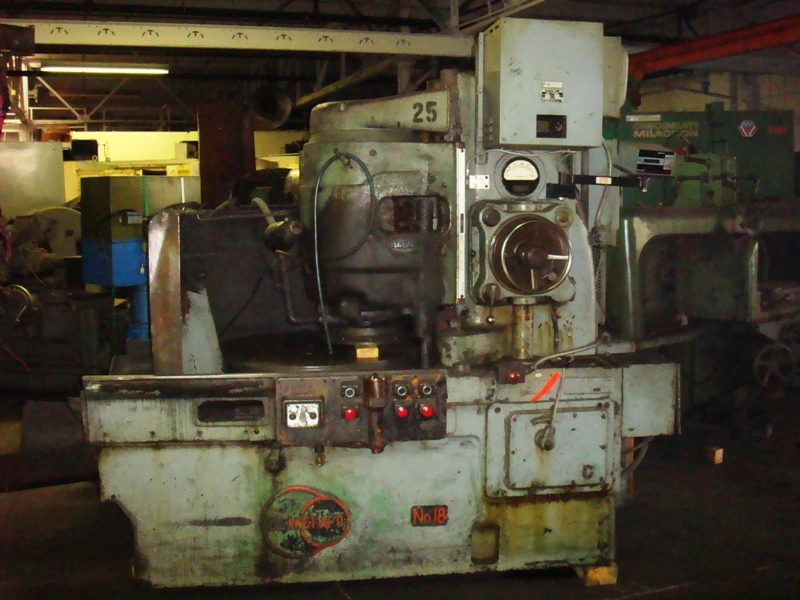

18-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

18-36 BLANCHARD HIGH POWERED VERTICAL ROTARY SURFACE GRINDER

S/N 5742

STANDARD CATALOG SPECIFICATIONS

RANGE
36 diameter x 12 high over 36 chuck with new cylinder wheel - 11 high with Blanchard segment wheel.

WORKTABLE
PRIVATE Blanchard one-piece steel magnetic chuck, 36 diameter with 5/8pole spacing. Chuck has 2 center hole and nineteen 3/8 tapped holes in 36 chuck. Maximum weight of work load 3,000 lbs.tc� \l 1Blanchard one-piece steel magnetic chuck, 36\ diameter with5/8\ pole spacing.� Chuck has2\ center hole and nineteen 3/8\ tapped holes in 36\chuck.� Maximum weight of work load 3,000lbs.

SPEEDS
Wheel: 720 R.P.M. on 60 cycle; 750 R.P.M. on 50 cycle
Chuck: 6, 9, 12, 18, 25, 33 R.P.M.
(On 50 cycles chuck speeds are 5/6 of these.)

FEED
Vertical down feed of wheel by hand or power.
PRIVATE Power feed: On 60 cycles approximately .004 to .080, and on 50 cycles approximately .003to .066 per minute with accuratetc� \l 1 Powerfeed\:� On 60 cycles approximately.004\ to .080\, and on 50 cycles approximately .003\ to.066\ per minute with accurate
automatic stop. Maximum distance of down feed before stop operates is one turn of dial, .100. Wheel head has rapid power
rising and lowering, interlocked with feed.

WATER SUPPLY
Easy cleaning tank in base, capacity 150 gallons.
Motor driven centrifugal pump submerged in tank, 1 1/2 discharge pipe, 60 gallons per minute, supplying water inside the wheel and to outside nozzle through 1 pipes.

CURRENT FOR MAGNETIC CHUCK
36diameter: 110 volts, D.C. 7.2 amps, 792 watts
220 volts, D.C. 3.5 amps, 792 watts

FLOOR SPACE HEIGHT
Length 9'3, width 4'11 including control cabinet.
Maximum height 7'7, minimum 6'9.
Height of chuck from floor 35.

WEIGHT
11,800 lbs.

EQUIPMENT FEATURES
36 Blanchard one piece steel magnetic chuck.
25 H.P. 220/440 3 60 cycle head motor.
Water guards.
Coolant in base.
Neutrofier/Rectifier.
Dr of or vertical head.

Specifications are deemed accurate, however, subject to verification or prior sale.
