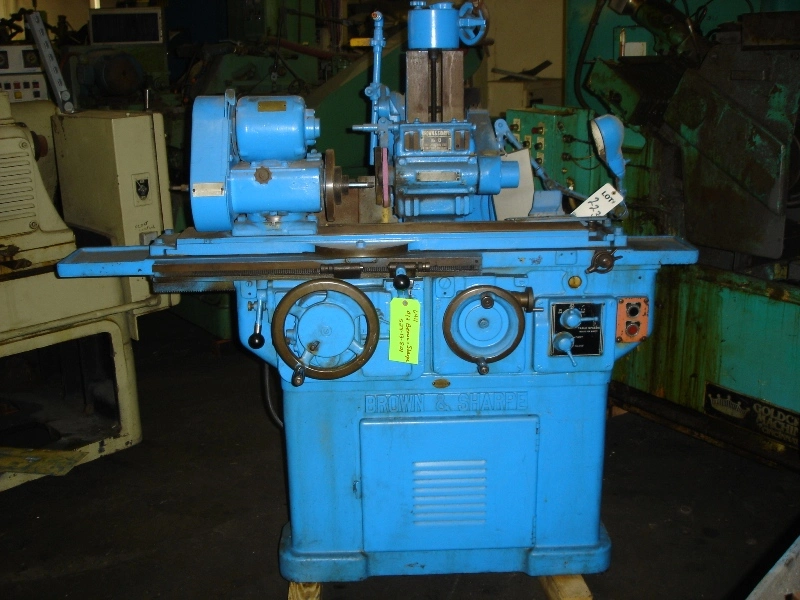

#13 BROWN & SHARPE UNIVERSAL TOOL & CUTTER GRINDERS

#13 BROWN SHARPE UNIVERSAL TOOL CUTTER GRINDERS

S/N 525-13-801 Year: 1957

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Swing over table................................... 8
Distance between centers........................... 24
Distance from center line of work to
center of wheel spindle -Maximum.................. 12 1/4
-Minimum.................. 2 1/4
Distance center of wheel spindle to
top of table -Maximum............................. 12 1/8
-Minimum............................. 3 3/4

SPEEDS
Wheel spindle speeds (3)................. 2455, 3545, 5730 RPM
Head stock work speeds (3)............... 120, 300, 530 RPM

WHEEL SPINDLE SLIDE
Vertical adjustment................................8 3/8

SPINDLE SLIDE UPRIGHT
Transverse movement................................ 10 1/2

WHEEL SIZE
Takes wheels............................. 7 x 1/2 x 1 1/2

HEAD STOCK
Base swivels either side of zero................... 100 Degrees

SWIVEL TABLE
Angular settings, either direction................. 90 Degrees

EQUIPMENT FEATURES
1 1/2 HP Main drive motor.
1/6 HP Head stock motor.
Electrical controls.
Lever tail stock.
Coolant Pump.
Approximate weight: 2,500 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
