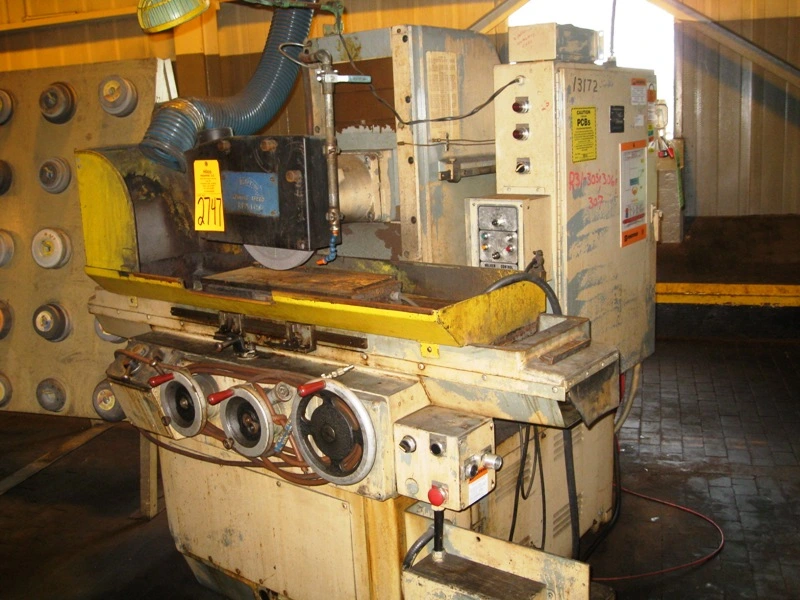

824 BROWN & SHARPE MICRO-MASTER SURFACE GRINDER

824 BROWN SHARPE MICRO-MASTER SURFACE GRINDER

S/N 523-824-2057 Year: 1979

STANDARD SPECIFICATIONS

CAPACITY
Maximum work width and length……………………………………….… 8 x 24
Maximum work height using 14 diameter wheel…………………………13 1/2
With 4 1/2 extra vertical capacity parts (available at extra cost)………… 18

SPINDLE
Removable unit type with super precision, sealed anti-friction bearing unit.
Choice of drive motor:
Oriflex drive (through six 0rings)……………………………………… 3 HP
Direct drive……………………………………………………………..… 5 HP
Speed:
Oriflex drive………………………………………………………………. 1760 RPM
Direct motor drive………………………………………………………… 1750 RPM
Wheel dimensions, Oriflex drive and direct drive:
Diameter………………………………………………………………….. 14
Thickness (wheel sleeves and guards take wheels up to 11/2 thick……. 1
Hole diameter…………………………………………………………….. 5

STANDARD SPECIFICATIONS

TABLE
Slides on one V and one flat way, 3 T-slots:
Working surface…………………………………………………. 8 x 24
T-slot width……………………………………………………… 9/16

FEEDS
Longitudinal (table) hydraulic any desired rate from…………….10 to 125 FPM
Hand wheel:
Range per revolution……………………………………………… 1 1/2
Maximum longitudinal travel…………………………………….. 28
Cross (spindle slide upright).
Hydraulic:
Amount at each reversal of power table travel. Any desired
increment from ………………………………………………….. .010 to .500
Continuous transverse feed:
For wheel truing………………………………………………….. 10/min.
For rapid transverse wheel positioning…………………………… 75/min.
Hand wheel:
Graduated to read to………………………………………………. .0002
Fine feed knob (optional):
Graduated to read………..………………………………………… .0001
Transverse movement - maximum……………..………………….. 10
Vertical (wheel spindle slide) hand wheel:
Graduated to read to……………………………………………….. .0002
Range per revolution………………………………………………. .050
Fine feed knob:
Graduated to read to……………………………………………….... .0001
Maximum vertical adjustment……………………………………… 14 3/4
Rapid power positioning - rate…………………………………….. 40/min.

HYDRAULIC SYSTEM
Capacity………………………………………………………. 23 gallons
Pump (BS No. 511 - modified) motor………………………. 2 HP
Heat exchanger for oil:
Cooling fan motor…………………………………………….. 1/40 HP

LUBRICATION SYSTEM
Automatic and filtered.Uses same reservoir as hydraulic system.

SHIPPING DATA
Net weight…………………………………………………….. 4725 lbs.
Gross weight………………………………………………….. 5325 lbs.
Dimensions - crated overall:
Height…………………………………………………………. 75
Width and depth………………………………………………. 82 x 80

EQUIPMENT FEATURES
Power up down.
Coolant pump tank.
Table mounted wheel dresser.
Attached electrical panel.

Specifications are deemed accurate, however, subject to verification or prior sale.
