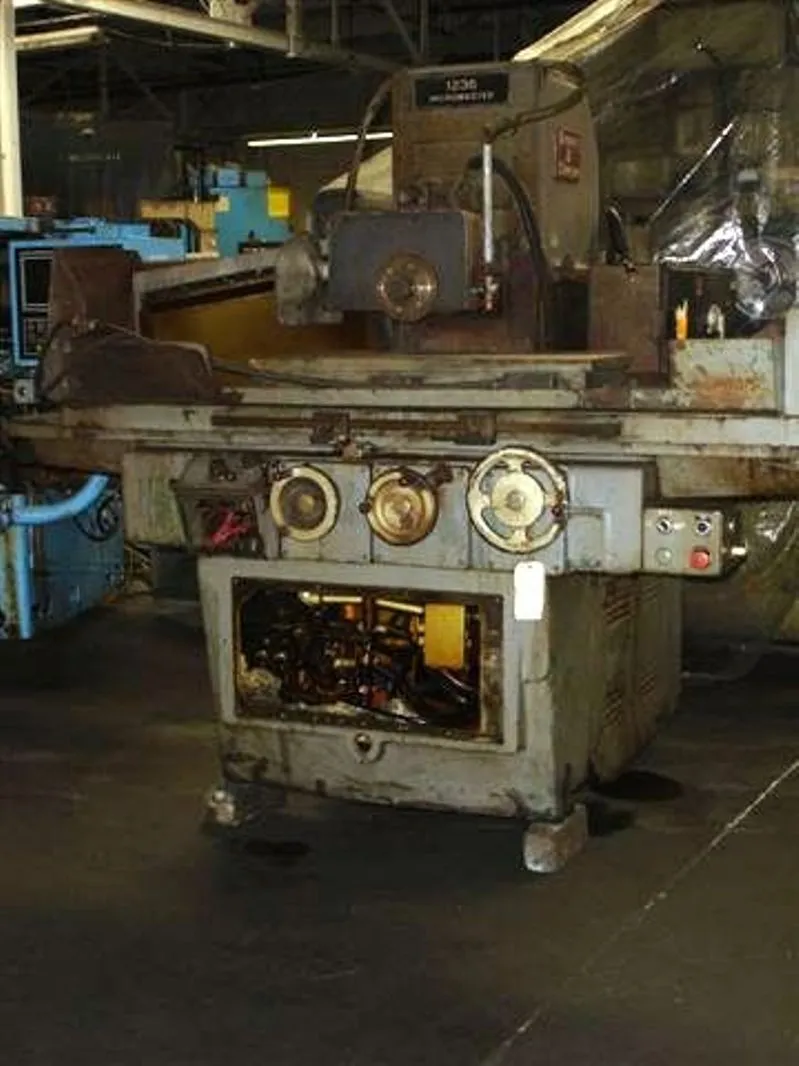

12 x 36 BROWN & SHARPE MICROMASTER HYDRAULIC SURFACE GRINDER

12 x 36 BROWN SHARPE MICROMASTER
HYDRAULIC SURFACE GRINDER

S/N 523-1236-345 Year: 1976

STANDARD SPECIFICATIONS
Grinding capacities……………………………………………..….. 12 x 36
Height under wheel……………………………………………..….. 19
Spindle speed………………………………………………….…… 1800 RPM
Wheel size…………………………………………………….……. 12 x 1 to 1 1/2
Longitudinal feed rate……………………………………………… 10 to 90 FPM
Cross feed rate……………………………………………………… 0.10 to 0.500
Power wheel truing…………………………………………...……. 10/min.
Rapid traverse positioning…………………………………...…….. 150/min.
Rapid vertical power positioning…………………………...……… 40/min.
Net weight (approximate)……………………………………..…… 5200 pounds
Spindle motor horsepower…………………………………...…….. 5 H.P. direct drive
EQUIPPED WITH
12x 36 Electromagnetic chuck and neutrofier.
Incremental down feed.
Coolant tank and pump.
Above the wheel dresser.
Attached electrical panel.
5 H.P. Spindle.

Specifications are deemed accurate, however, subject to verification or prior sale.
