BROWN & SHARPE #5 522-5-121

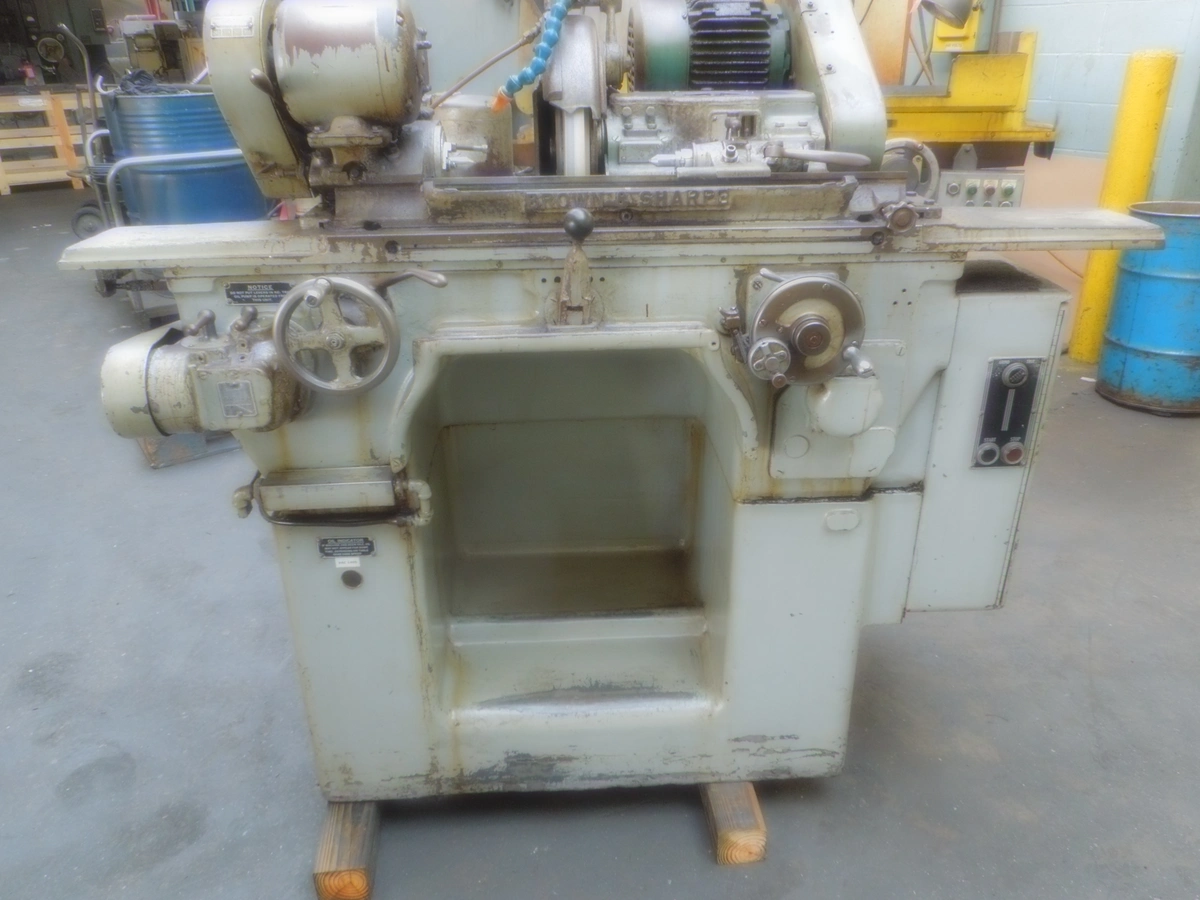

4 x 18 BROWN SHARPE NO. 5 PLAIN CYLINDRICAL GRINDER

PRIVATES/N 522-5-121 Year: 1952

PRIVATE STANDARD SPECIFICATIONStc� \l 1 STANDARD SPECIFICATIONS

PRIVATE CAPACITYtc� \l 2 CAPACITY
4 x 18
Center swing over table......................................... 4”
Center distance................................................... 13”
Wheel................................................................ 14”
Grinds work to...................................................... 3” diameter

PRIVATE MOTORStc� \l 1 MOTORS
Wheel spindle.......................................................... 3 HP
Head stock........................................................... 1/4 HP
Table motor..........................................................1/4 HP
Coolant pump motor.............................................. 1/4 HP

PRIVATE SPEEDStc� \l 1 SPEEDS
Wheel spindle.................................................... 1772 RPM
Work speeds: 4 changes...........202, 319, 505, and 800 RPM
(with 60 cycle motor)

PRIVATE WHEEL SPINDLEtc� \l 1 WHEEL SPINDLE
14” diameter x 5/8”to 2” width x 5” hole
PRIVATE COOLANT SYSTEMtc� \l 1 COOLANT SYSTEM
Capacity........................................................... 6 gallons
Pump motor.................................... 1/4 HP integral motor

PRIVATE DIMENSIONS WEIGHTtc� \l 1 DIMENSIONS WEIGHT
Dimensions................................................... 67 x 45 x 60
Space occupied............................................ 105 cubic feet
Net weight (approximately).................................. 2,850 lbs.
Shipping weight (approximately)........................... 3,400 lbs.

EQUIPMENT FEATURES
Hydraulic table travel.
Internal coolant.
Manual tail stock.
Power table.

Specifications are deemed accurate, however, subject to verification or prior sale.
