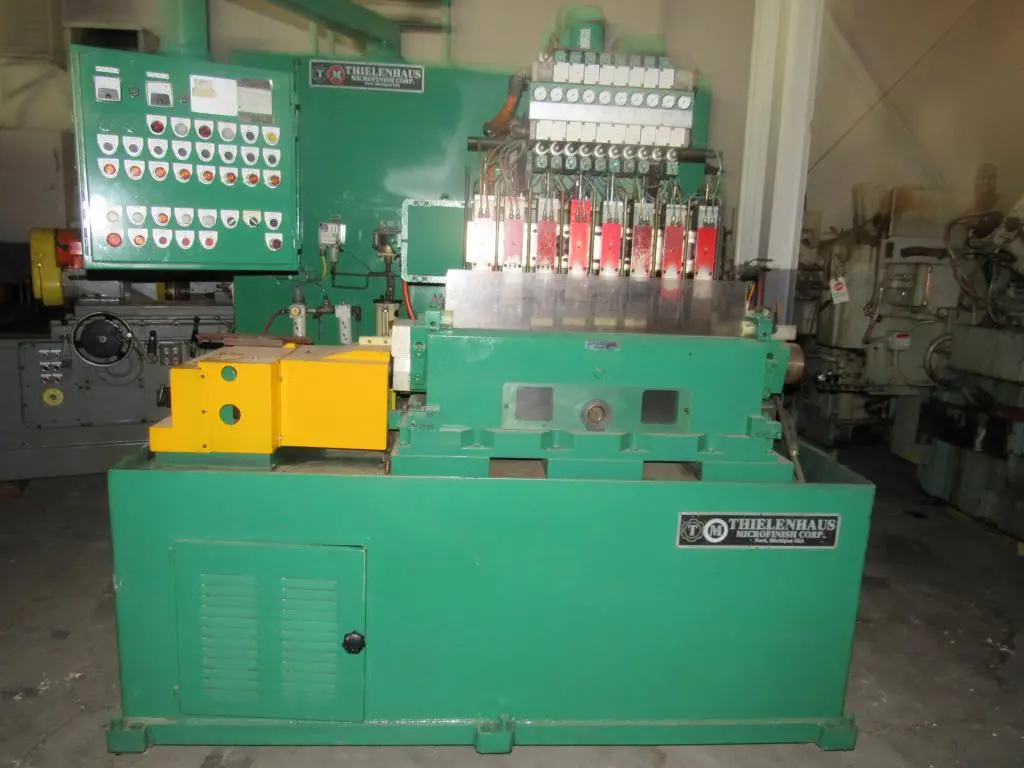

THIELENHAUS SF-125 H8A 5-1-007006

THIELENHAUS SF125 SUPER FINISHER

S/N 5.1.007006

STANDARD SPECIFICATIONS
Working diameter…………………………………… 0.118” – 3.14”
Drive roll speed……………………………………… 0 – 720 RPM
Drive roll length……………………………………... 42.9”
Number of toll carriers………………………………. 8
Tool oscillation frequency (double str./min)………… 75 – 1500
Horizontal oscillation stroke of the tool……………… 0 – 0.23”
Vertical oscillation stroke of the toll…………………. 1.96”
Total power required…………………………………. 12 HP
Minimum compressed air pressure (bar)……………… 4,5
Flushing oil system – flowrate……………………….. 80 I/min
Operating voltage……………………………………… 3x380�5%Volt
Operating frequency…………………………………… 50�3 Hz
Control voltage…………………………………………. 24 Volt DC

Specifications are deemed accurate, however, subject to verification or prior sale.
