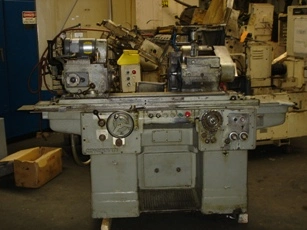

10 x 24 CINCINNATI UNIVERSAL CYLINDRICAL GRINDER

10 x 24CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
S/N 4U2B5L-4 Year: 1962

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Maximum swing over table......................... 10 15/16
Nominal distance between centers................. 25 9/16
Swivel table graduated to an angle of:
Toward wheel head................................. 8 degrees
Away from wheel head.............................. 3 degrees
Swivel table graduated taper per foot:
Toward wheel head................................. 4 1/2
Away from wheel head.............................. 2

GRINDING WHEEL HEAD
Grinding wheels regularly supplied:
(Diameter x Face x Hole).......................... 12 x 1 1/2
Swivel range: Lower swivel, right left.......... 220 degrees
Upper swivel, right left.......... 180 degrees

HEAD STOCK FOOT STOCK
Head stock foot stock spindle taper............. Jar no No. 7
Number of work rotation speeds.................... Infinite
Range of work speeds.............................. 50 to 600 RPM
Head stock spindle nose (American Lathe Std)...... 5

MISCELLANEOUS
Number of table traverse speeds................... Infinite
Range of table traverse speeds in/per/min......... 3 to 280
Accuracy of table reversal at all traverse rates.. .001
Table tarry adjustment - Infinite................. 0 to 5 Sec
Mechanical hand table traverse: (rate per revolution at
hand wheel) Slow:........ 1/10 Rapid.......... 1
Distance from floor to work centers............... 46 1/2
Automatic in feed at table reversal: (Diameter reduction)
Minimum....................0001 Maximum........ .0025
Minimum movement necessary to reverse the table... 1/16
Wheel head movement per turn of hand wheel:
Minimum....................0005 Maximum........ .050
Minimum in feed increment in terms of diameter reduction:
...................................................0001

POWER REQUIREMENTS
Wheel head motor.................................. 2 HP
Head stock motor.................................. 1/2 HP
Hydraulic pump motor.............................. 3/4 HP
Coolant pump motor................................ 1/4 HP

EQUIPMENT FEATURES
Hydraulic table travel.
Left and right tarry.
Auto feed coarse fine.
Live dead center head stock spindle.
Freestanding electrical panel.
All electrics and controls.
Vari speed head stock.

FLOOR SPACE REQUIRED......................... 59 1/2 x 144 1/2

WEIGHT.......................................4,900 lbs.

*Please note all specifications are approximate.

Specifications are deemed accurate, however, subject to verification or prior sale.
