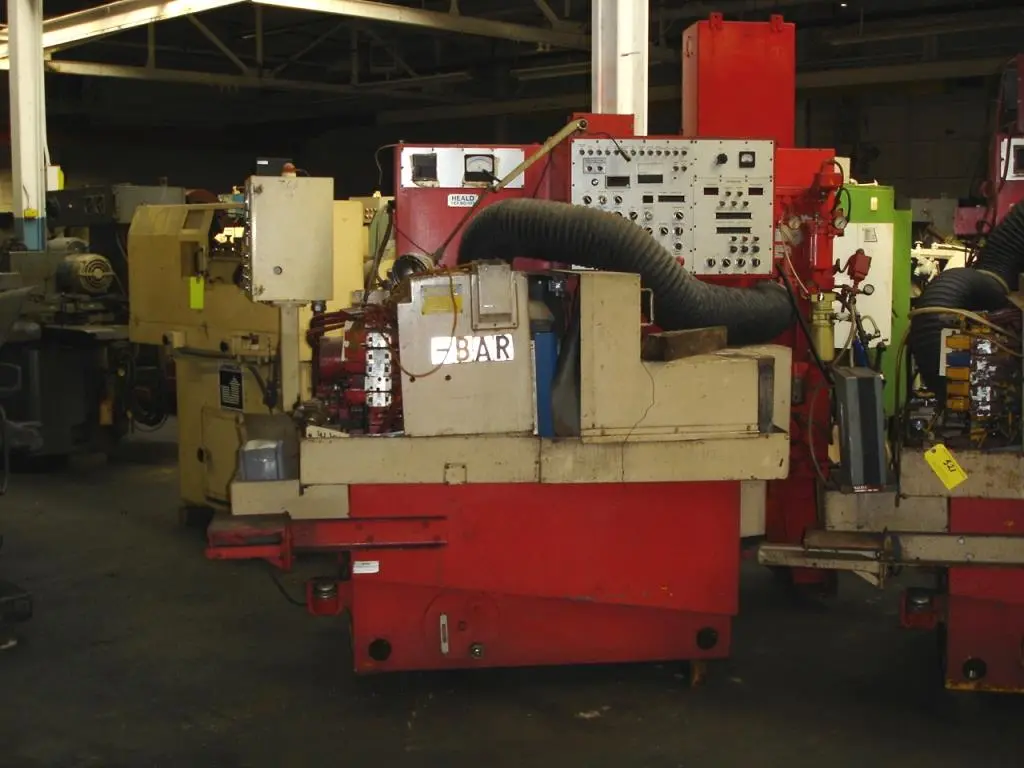

1EF-90 CINCINNATI HEALD

1EF-90 CINCINNATI HEALD
S/N 49730 Year:1983

STANDARD SPECIFICATIONS
Overall height……………………………………………………… 57
Floor space (w/o coolant tank)…………………………………….. 60 long
……………………………………...69wide
Floor space (with coolant tank)……………………………………. 90 long
……………………………………..73wide
Net weight of machine(approximately)…………………………… 6,500 lbs.
Gross weight of machine crated (approximately)…………………. 7,200 lbs.
Gross weight of machine boxed (approximately)…………………. 7,700 lbs.

SPEEDS AND FEEDS
Total table travel…………………………………………………… 7
Standard table oscillator stroke (maximum)……………………….. .25
Optional stroke(maximum)……………………………………….. .50
Rate feed stroke (on diameter)…………………………………….. .0999
Wheel wear compensation(on diameter)………………………….. .0001
Wheel wear maximum (on diameter)……………………………… .999

MACHINE CAPACITIES
Maximum outside diameter of work……………………………….. 3
Minimum outside diameter of work……………………………….. 3/8
Maximum length of work………………………………………….. 1 1/2
Minimum bore size of work
Maximum swivel of work
Depends on work piece configuration
FEATURES
Dresser.
Loading chutes.
Magnetic drive head.
