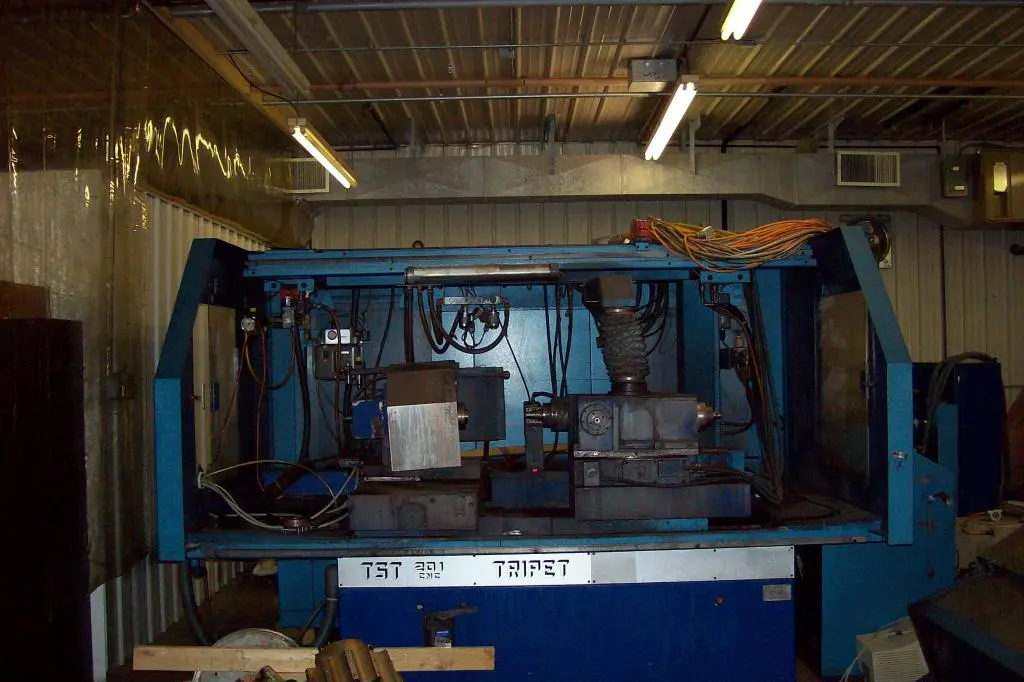

TRIPET TST 201 CNC HIGH PRECISION INTERNAL GRINDER

TRIPET TST 201 CNC HIGH PRECISION INTERNAL GRINDER

S/N 4950-21-201

TECHNICAL DATA
Grinding diameter range (production)......... 3 – 150mm (12 – 6)
(on request up to diameter 225 mm – 8.9)
Grinding length............................. 200 mm (7.9)
Center height above table................... 162 mm (6.3)
Max. table trave............................ 480 mm (18.9)
Work head angular setting................... +45 degrees to 30 degrees
Work head spindle bore diameter............. 40 mm (1.57)
Max. weight on spindle nose................. Approx. 50 kg(110 lbs.)
(on request up to 100 kg – 220 lbs).
Work spindles speed range, step les......... 75 – 1300 R.P.M.
Work head fixed speed for setting........... 75 R.P.M.
Wheel spindle speed range................... 8000 – 150,000 R.P.M.
Dimensions.................................. 4770 x 3175 x 2155 mm
(188 x 125 x 85)
Net weight.................................. Approx. 4000 kg
Required powe............................... 10 – 15 kW

MAIN FEATURES
- A heavy, ribbed cast-iron base, designed to allow full length support of all slides over their entire travel.
- All slide ways with greased-for-life roller bearings.
- 4 kW variable speed wheel spindle motor, with solid state frequency converter.
- High speed table oscillation, programmable up to 10m/min. Hydraulic linear amplifier, roller mounted slide ways.
- Work piece in feed for grinding and wheel dressing given by D.C. motors and ball screws.
- Programmable working, dressing and reversing positions, with detection by rotary transducer.
- Interactive CNC system with screen diagnostics, for programming procedures to ISO, DIN 66025 and VSM 76120 recommendations.
- Five 32 KB microprocessors for axis monitoring and coordination, with possibilities for dedicated programs such as specific set ups.
- All electronic and electrical control equipment easily accessible in separate cabinet.
