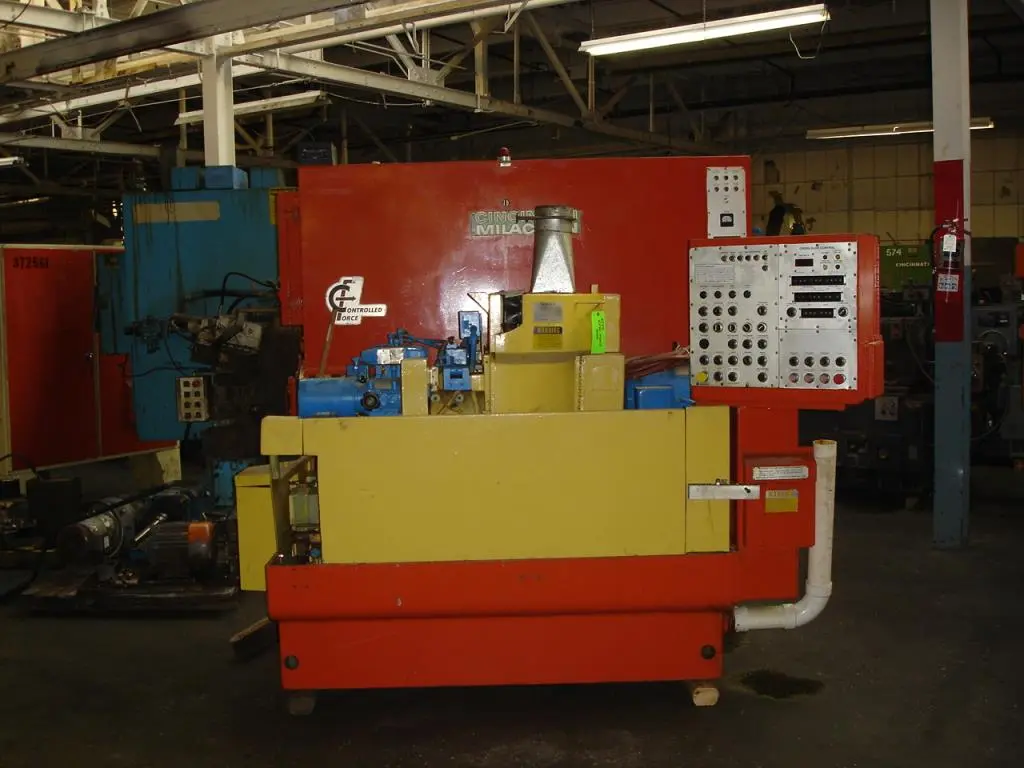

1CF-92 HEALD INTERNAL GRINDER

1CF-92 HEALD INTERNAL GRINDER

S/N 49050 Year: 1979

STANDARD CATALOG SPECIFICATIONS
Maximum outside diameter of work.............. 4 1/2
Minimum outside diameter of work.............. 7/8
Maximum length of work........................2
Maximum swivel of work(degrees).............. 12
Center of wheel spindle from floor............ 40

SPEEDS FEEDS
Table travel, total including run out......... 8
Wheel wear compensation: 0-.004 on dia.(.0001increments)
Work speeds, (std)... 266, 366,487, 804,1105, 1473RPM
High force,adjustable........................ 30 - 300 lbs.

DRIVE POWER REQUIREMENTS
Backing plate motor........................... 1/2 HP @ 520RPM
Wheel head motor for belt drive............... 7 1/2 HP @ 3600RPM
Hydraulic pump motor.......................... 2 HP @ 1800RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP

GENERALDATA
Overall height................................95 1/2
Length and width of base on floor............. 68 x 49
Floor space w/o coolant tank.................. 91 x 79
Floor space with coolant tank................. 109 x 79
Net weight of machine(approximate)........... 10,500#

EQUIPPED WITH
A-Frame red head grinding spindle.
Single point diamond dresser with face dress capabilities.
Demag unit.
Complete hydraulics.
Spark out.
Exterior oscillator.
Rough finish grind cycle.
Cross sliding work head.
Motorized variable speed work head.

Specifications are deemed accurate, however, subject to verification or prior sale.
