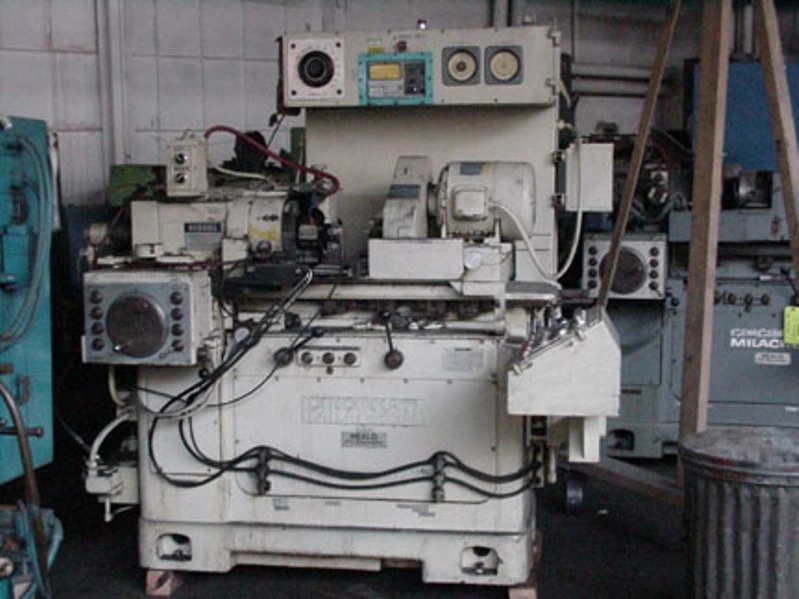

171 HEALD SIZEMATIC INTERNAL GRINDER

171 HEALD SIZEMATIC INTERNAL GRINDER

S/N 48894 Year: 1986

STANDARD SPECIFICATIONS

CAPACITIES
Maximum swing, straight work, on center line dia.. 13-3/4
Maximum swing over table.......................... 11-3/4
Swing inside standard guard diameter.............. 8
Maximum length of hole............................ 3
Maximum diameter of hole.......................... 2
Minimum diameter of hole.......................... 1/8
Maximum included angle (Sizematic only)........... 60 degrees
Center of chuck spindle from floor................ 44
Diameter of work head spindle flange.............. 6
Table travel...................................... 12

SPEEDS FEEDS
Table speed - rapid traverse...................... 35 FPM
Table speeds for grinding unlimited between....... 0-20 FPM
Work head speed - two step sheave................. 960 or 1360 FPM
One turn of cross feed hand wheel................. .060 on dia.
Maximum power cross feed.......................... .042 on dia.
Wheel wear compensation on diameter............... 0 - .004

DRIVE
Work head motor -
Std. voltages.................. 60 cycle a-c 1 HP - 1800 RPM
Oil pump motor................. 60 cycle a-c 1-1/2 HP - 1800 RPM
Wheel head motor............... 60 cycle a-c 5 HP - 3600 RPM
Coolant pump motor............. 60 cycle a-c 1/4 HP - 1800 RPM

GENERAL DATA
Capacity of oil tank............................... 10 gallons
Capacity of coolant tank........................... 55 gallons
Net weight of machine (approx.).................... 5,400 lbs.

ADDITIONAL FEATURES
Marposse E-9 gauge system.
Rough and finish timer.
Vari speed work head.
0 � 1200 R.P.M.
Reciprocation or plunge.
Single or double back off.
3 Jaw chuck.

Specifications are deemed accurate, however, subject to verification or prior sale
