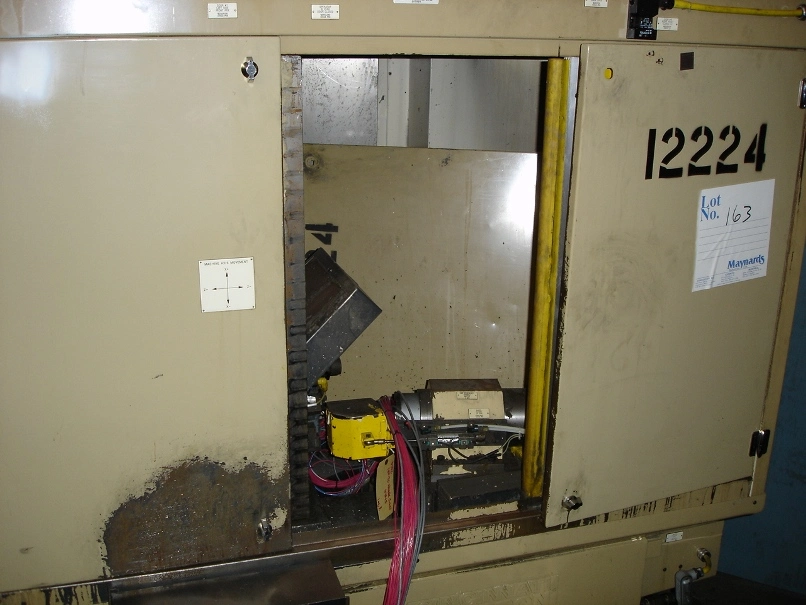

1EF-70 CINCINNATI HEALD INTERNALGRINDER

1EF-70 CINCINNATI HEALD INTERNAL GRINDER

S/N 47945

STANDARD SPECIFICATIONS

Machine Capacities- Front Arm Loader

Maximum outside diameter of work……………………………….. 4 �

Minimum outside diameter of work……………………………….. * 1 �

*(Depends on work piece configuration)

Maximum length of work………………………………………….. 3

Minimum bore size of work……………………………………….. 3/8

Maximum swivel of work (depends on work piece configuration)

Speeds and Feed

Total table travel…………………………………………………… 7

Standard table oscillator stroke (maximum)………………………. .25

Optional stroke (maximum)……………………………………….. .50

Rate feed stroke (on diameter)…………………………………….. .0999

Wheel wear compensation (on diameter)………………………..… .0001or 2.5 microns

Wheel wear maximum (on diameter)……………………………..... .999

General Data

Overall height…………………………………………………….. 57

Floor space (w/o coolant tank)…………………………………… 60 long

…………………………………….69 wide

Floor space (with coolant tank)…………………………………... 90long

…………………………………...73wide

Net weight of machine (approximately)………………………….. 6,500 lbs.

Gross weight of machine crated (approximately)………………… 7,200 lbs.

Gross weight of machine boxed (approximately)………………… 7,700 lbs.

Specifications area deemed accurate, however, subject to verification or prior sale.
