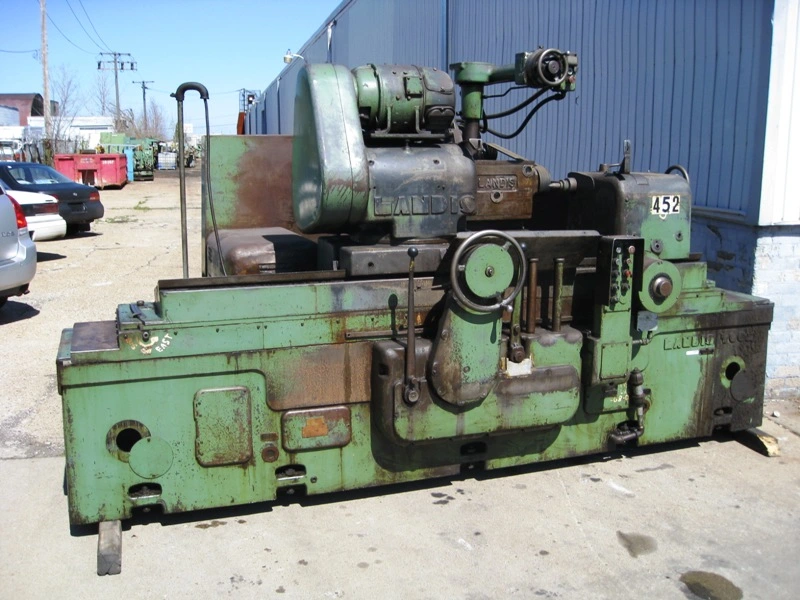

30 x 48 LANDIS CHW UNIVERSAL GRINDER

30 x 48 LANDIS CHW UNIVERSAL GRINDER
S/N 477-17 Year: 1952

STANDARD SPECIFICATIONS
Swing over table………………………………………… 30”
Distance between centers…………………………. 48”
Grinding wheel size……………………………………. 18” x 2.5” x 5”
Grinding wheel spindle motor……………………. 7.5 HP 1800 RPM
Work head drive motor……………………………… 2 HP
Variable speed work head.
Rapid advance on plunge.
Tarry left and right.
Screw type tail stock.
Single point dresser on tail stock.
Hand operated traverse (single speed) for swivel table and carriage.
Hydraulic traverse for swivel table and carriage.
Wheel feed mechanism which functions at points of carriage reversal.
Hand operated wheel feed with fine feed control.
Combination live/dead spindle head stock.
Coolant in base.

Specifications are deemed accurate, however, subject to verification or prior sale.
