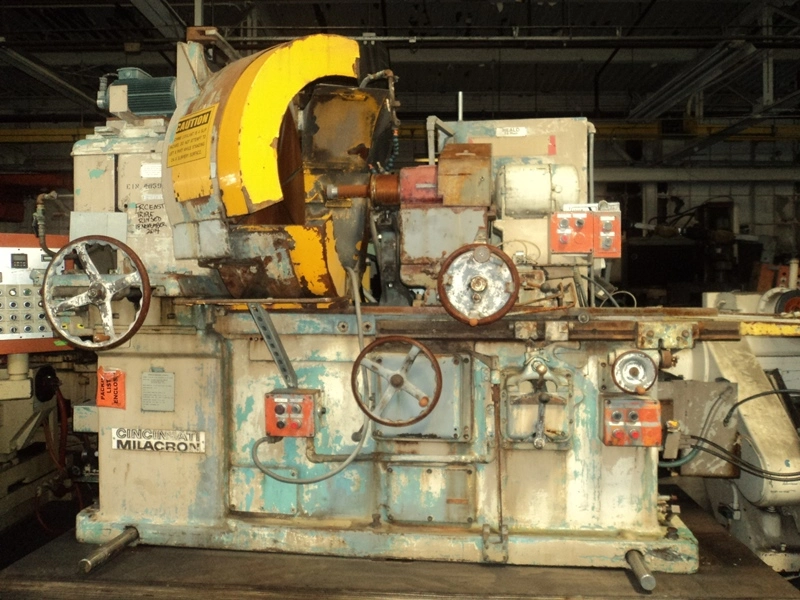

74 HEALD INTERNAL GRINDER

74 HEALD INTERNAL GRINDER

S/N 47273

STANDARD SPECIFICATIONS

CAPACITIES:
Swing over table (straight work)........................ 36
Maximum diameter of hole that can be ground............. 20
Grinding stroke.................................... 3/8” to 15”
Taper swivel on work head.......................... 60� inc.angle
Center of chuck spindle from floor...................... 50
Diameter of work head spindle flange.................... 12
Hole through work head spindle.......................... 1 11/16
Total table travel.

SPEEDS ANDFEEDS
Table speeds unlimited between............... 0 to 18 ft. per min
Work head speeds adjustable from............. a-c 41-62-82-123 RPM
Cross feed dial graduation represents................... .001
Power feed adjustment........................ 1 to 6 teeth
Each ratchet tooth with coarse gears (standard)......... .0002
Each ratchet tooth with fine gears (optional)........... .000128

DRIVES
Pump motor............................... 2 HP, ac - 1200 RPM
Work head motor..1-1 1/2-2-3 Tapered HP, ac-600-900-1200-1800 RPM
Wheel head motor......................... 7 1/2 HP, ac-3600 RPM

EQUIPMENT AND FEATURES
All trip dogs.
Cam facing stop.
Cross sliding work head.
Manual or hydraulic table.
All pick feeds.
36” Face plate.
Single point dresser.
Auto pick feed or manual pick feed.
Hydraulic wheel guard.
DC variable speed work head.

Specifications are deemed accurate, however, subject to verification or prior sale.
