Used 1966 GORTON 1-22 | MILLERS, VERTICAL

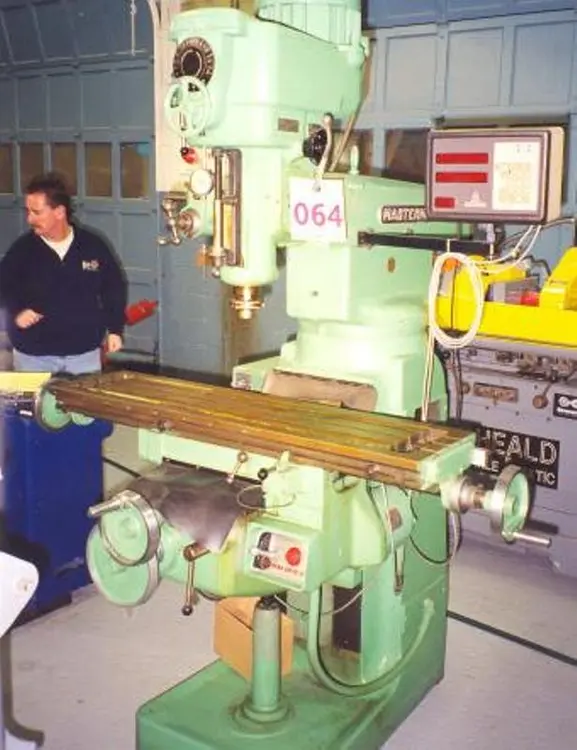

GORTON "MASTERMILL" VERTICAL MILLING MACHINE

S/N: 46610   New: 1966


SPECIFICATIONS:
Model 1-22
Working Surface of Table...................... 12" x 48"
Table Travel
Longitudinal............................. 28"
Cross.................................... 12"
Table Feed
Longitudinal............................. 0.6" -5" Min.
Ram Movement (In and Out)..................... 14"
Maximum Width of Workpiece Milled
With 1" Dia. Cutter....................... 22 3/4"
Vertical Travel of Knee....................... 15"
Spindle Travel................................ 4"
Spindle Taper................................. No. 30
Spindle Speeds (Infinitely Variable).......... 65 - 4600 RPM
Spindle Feeds (Infinitely Variable)........... 0.25" - 3" Min.
Spindle Motor................................. 2 HP 3/60

EQUIPPED WITH:
Wizard Anilam X-Y, D.R.O.
Variable Speed Milling Head
Infinitely Variable Spindle Down Feed
Dyna Drive II Infinitely Variable Table Feed
Power Elevation Unit
Extra Large Table
Extra Wide Cross Travel
Bijur Lubricating System
Flood Coolant System
Overall Dimensions (Approx)............. 72" L-R x 68" F-B X 80" H
Weight Approx................................. 3400 Lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
