GARDNER 2HD30-30 461-3

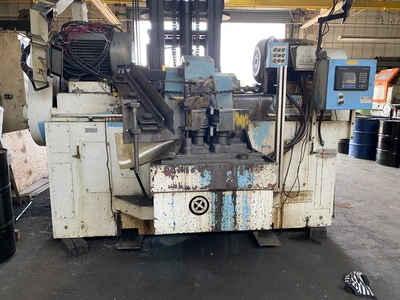

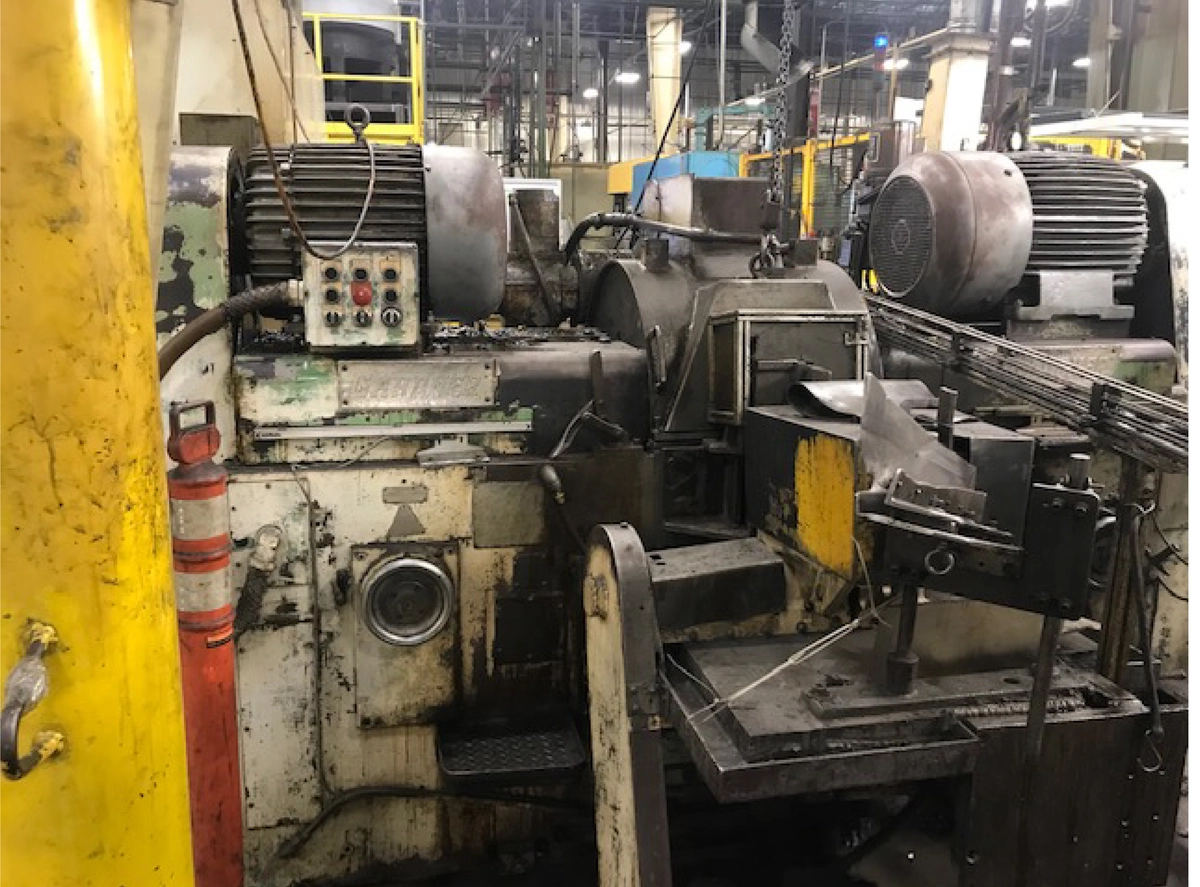

GARDNER 2HD30‑30 DOUBLE OPPOSED THRU FEED DISC GRINDER
PRIVATE S/N 461-3Year: 1965tc�\l 1 S/N 520-1

STANDARD CATALOG SPECIFICATIONS
30 Diameter wheels
(1) 75 HP Motor
(1) 75 HP Motor
220/440Volts, 3 Phase, 60 Cycle
Coolant thru spindle
Wheel truing unit, swing down style
Coolant and pump in base
Pushbutton control station electrical panel

PRIVATEEQUIPMENT FEATUREStc� \l 1 EQUIPMENT FEATURES
Belt style thru feed set up
Variable speed thru feed belt
Dresser above the wheel
Freestanding electrical panel
Pushbutton rapid feed right and left heads
Pushbutton incremental feed right and left heads
Auto lubrication
Rear push button station - right and left hand feed
Right spindle motor - 75 H.P./220/440-3/60
Left spindle motor - 75 H.P./220/440-3/60

Specifications are deemed accurate, however, subject to verification or prior sale.
