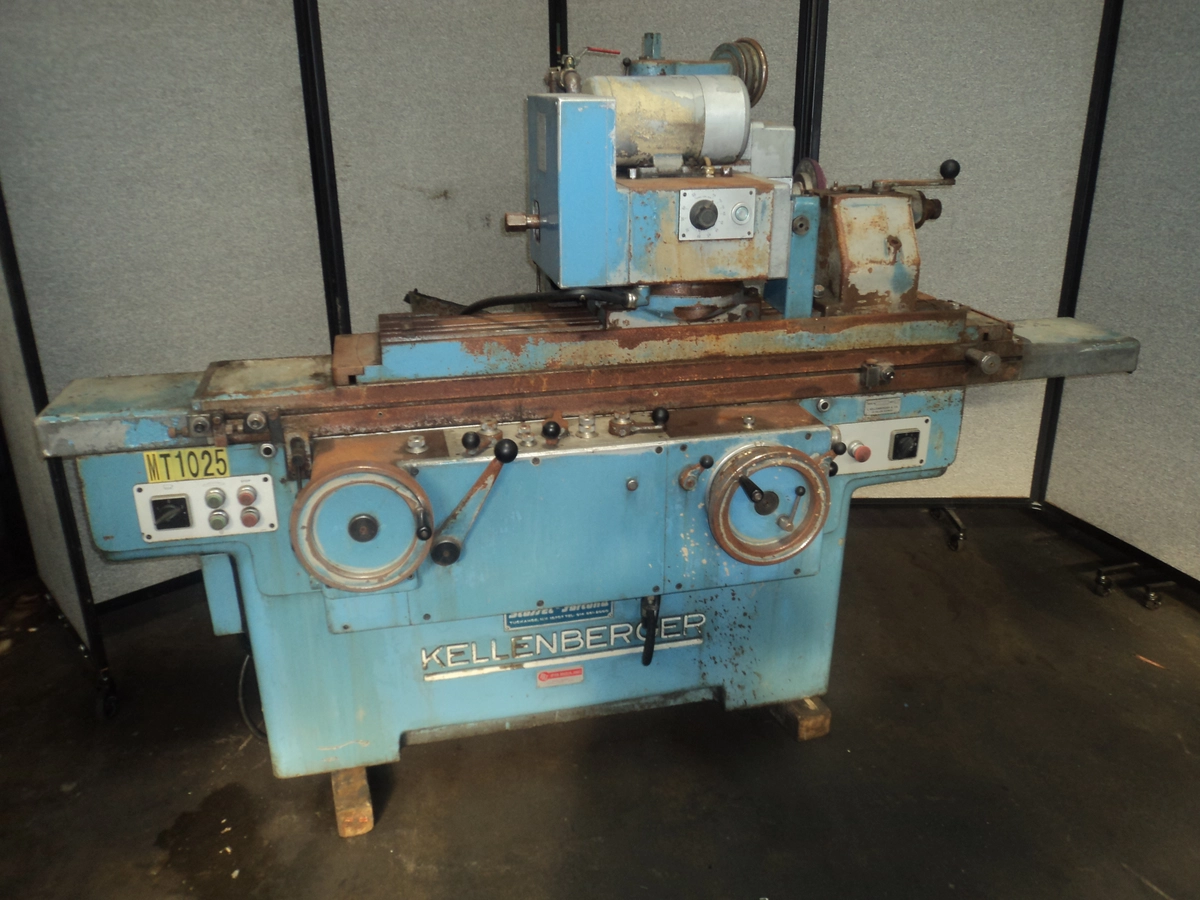

KELLENBERGER 600 U 441-662

14 X 24 KELLENBERGER MODEL 600 U
UNIVERSAL CYLINDRICAL GRINDER
S/N 441-662

STANDARD SPECIFICATIONS
14 Actual swing over table
24 distance between centers

TABLE
35 7/16 Maximum travel of table
11�Degrees maximum swivel

WHEELSLIDE
11.2 Maximum travel
1 37/64 Forward reverse rapid wheel slide

WHEELHEAD
15.7 O.D. x 1.9 width x5bore
1500, 1700, 2200 R.P.M. spindle speeds

WORKHEAD
360�swivel
20-400 R.P.M. speeds infinitely variable
5 Internal taper of spindle morse

MOTORS
4 H.P. 3000 R.P.M. wheel head
220/440/3/60 cycles

EQUIPMENT FEATURES
Automatic cycle
Internal attachment
Pick feed
Locking swivel wheel head
Coolant tank pump
Stand-alone electrical.
Swing around internal grinding attachment.
OD/ID Facing spindle set up
Face grinding wheel set up with7.5”diameter wheel.
15.7” Diameter OD wheel on main spindle.

Approximate weight: 6000 lbs.

Specifications are deemed accurate, however, subject to verification or prior sale.
