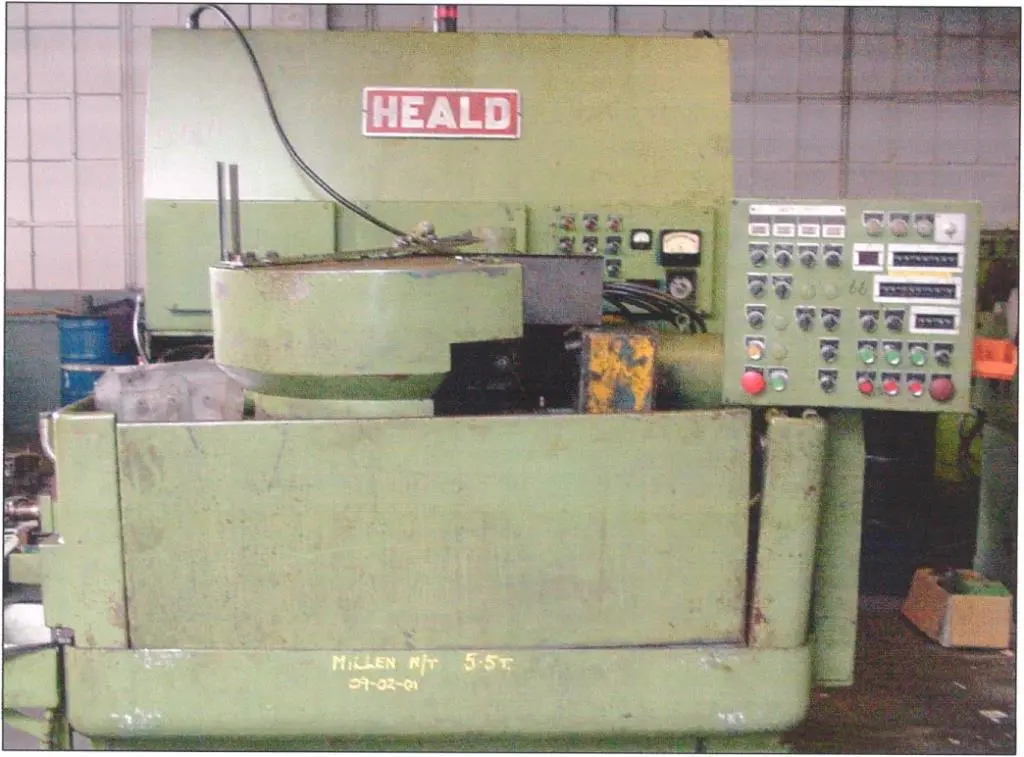

1CF-91 HEALD INTERNAL BORE GRINDER

1CF-91 HEALD INTERNAL BORE GRINDER

S/N 43968Year:1968

STANDARD CATALOG SPECIFICATIONS
Maximum outside diameter of work................... 4 1/2
Minimum outside diameter of work................... 7/8
Maximum length of work............................. 2
Maximum swivel of work.............................12 degrees
Center of wheel spindle from floor................. 40

SPEEDS FEEDS
Table travel (total including run-out)............. 5 3/4
Wheel wear compensation:...... 0-.004 on dia. (.0001 increments)
Work speeds (std)............. 266, 366, 487,804, 1105 1473RPM
High force(adjustable)............................ 30 - 300 lbs.

DRIVE POWER REQUIREMENTS
Backing plate motor........................... 1/2 HP @ 520RPM
Wheel head motor for belt drive............... 7 1/2 HP @ 3600RPM
Hydraulic pump motor.......................... 2 HP @ 1800RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP

GENERALDATA
Overall height.....................................95 1/2
Length width of base on floor.................... 68 x 49
Floor space (without coolant tank)................. 91 x 79
Floor space (with coolant tank).................... 109 x 79
Net weight of machine(approximate)................ 10,500#

EQUIPMENT FEATURES
Single point 2 position radius dresser.
Push button control panel.
Timers.
Hydrostatic slides.
Load/unload chute.
Load meter.
Table index.
Self contained hydraulics.
All guards.
Compensation.
Cross slide.

Specifications are deemed accurate, however, subject to verification or prior sale.
