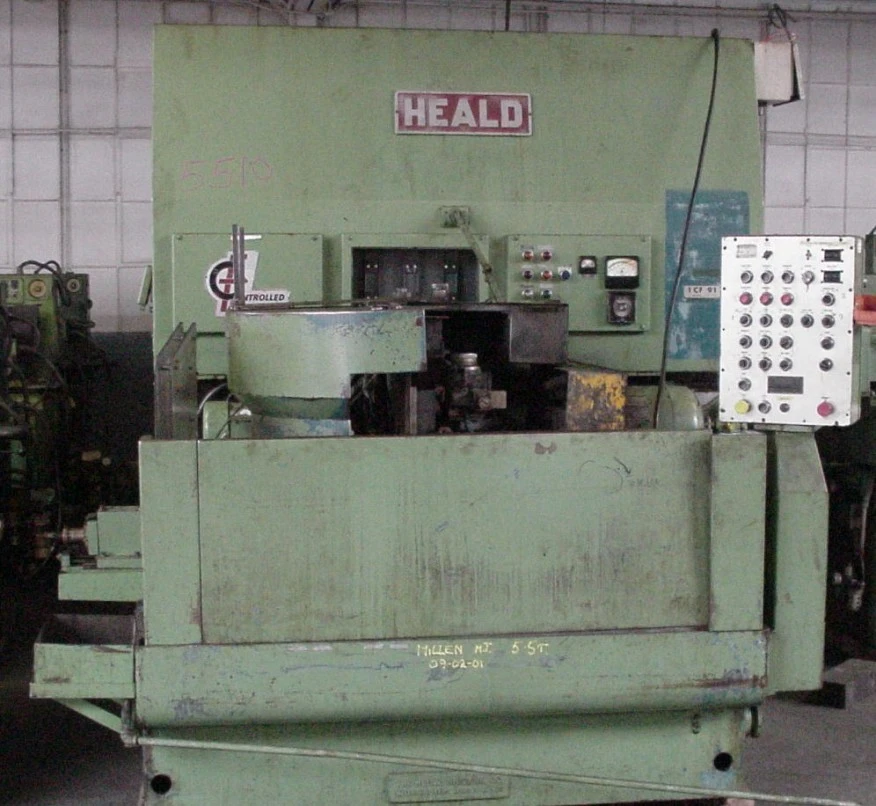

1CF-91 HEALD INTERNAL BORE GRINDER

1CF-91 HEALD INTERNAL BORE GRINDER

S/N 43967Year: 1968

STANDARD CATALOG SPECIFICATIONS
Maximum outside diameter of work................... 4 1/2
Minimum outside diameter of work................... 7/8
Maximum length of work............................. 2
Maximum swivel of work............................. 12 degrees
Center of wheel spindle from floor................. 40

SPEEDS FEEDS
Table travel (total including run-out)............. 5 3/4
Wheel wear compensation:......0-.004 on dia. (.0001 increments)
Work speeds (std).............266, 366,487, 804, 1105 1473RPM
High force(adjustable)............................ 30 - 300 lbs.

DRIVE POWER REQUIREMENTS
Backing plate motor...........................1/2 HP @ 520RPM
Wheel head motor for belt drive............... 7 1/2 HP @ 3600RPM
Hydraulic pump motor.......................... 2 HP @ 1800RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP

GENERALDATA
Overall height.....................................95 1/2
Length width of base on floor.................... 68 x 49
Floor space (without coolant tank)................. 91 x 79
Floor space (with coolant tank).................... 109 x 79
Net weight of machine(approximate)................ 10,500#

EQUIPMENT FEATURES
Single point radius dresser and single point straight dresser.
Push button control panel.
Timers.
Hydrostatic slides.
Load/unload chute.
Load meter.
Cross slide.
All guards.
Compensation.
Table index.
Self contained hydraulics.
Shoe fixture pressure roller face.
Clamping.

Specifications are deemed accurate, however, subject to verification or prior sale.
