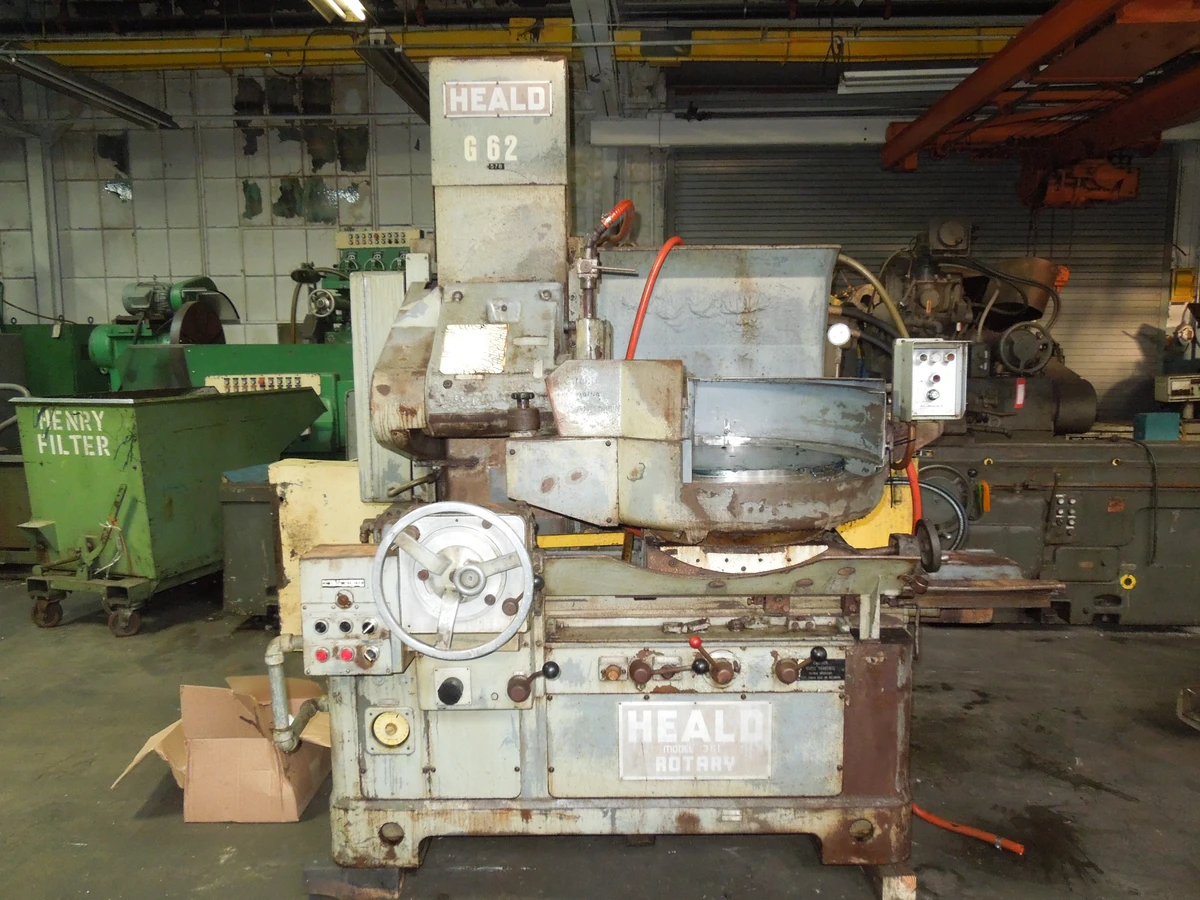

361-24 HEALD ROTARY SURFACE GRINDER

361-24 HEALD ROTARY SURFACE GRINDER
S/N 43653

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24
Swing inside coolant ................................... 28
Vertical range (full wheel) ........................... 12
Convex.............................................17 Degrees
Concave............................................10 Degrees
24Chuck..........................................32 ‑ 85 RPM
Table speeds ‑ Rapid traverse..................... 20 FPM
Rapid traverse..................................... 0 ‑ 15 FPM

MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760RPM

OVERALL DIMENSIONS
Floorspace with coolant tank...................... 115 x 79
Approximate net weight............................. 12,900 lbs.

EQUIPPED WITH
24Diametercircular pattern mag chuckConvex ‑ Concave
14DiameterwheelCompensation
11/2Wide wheel faceHydraulic table
28”SwingInside GuardsPushbutton station
Attached Electrical
