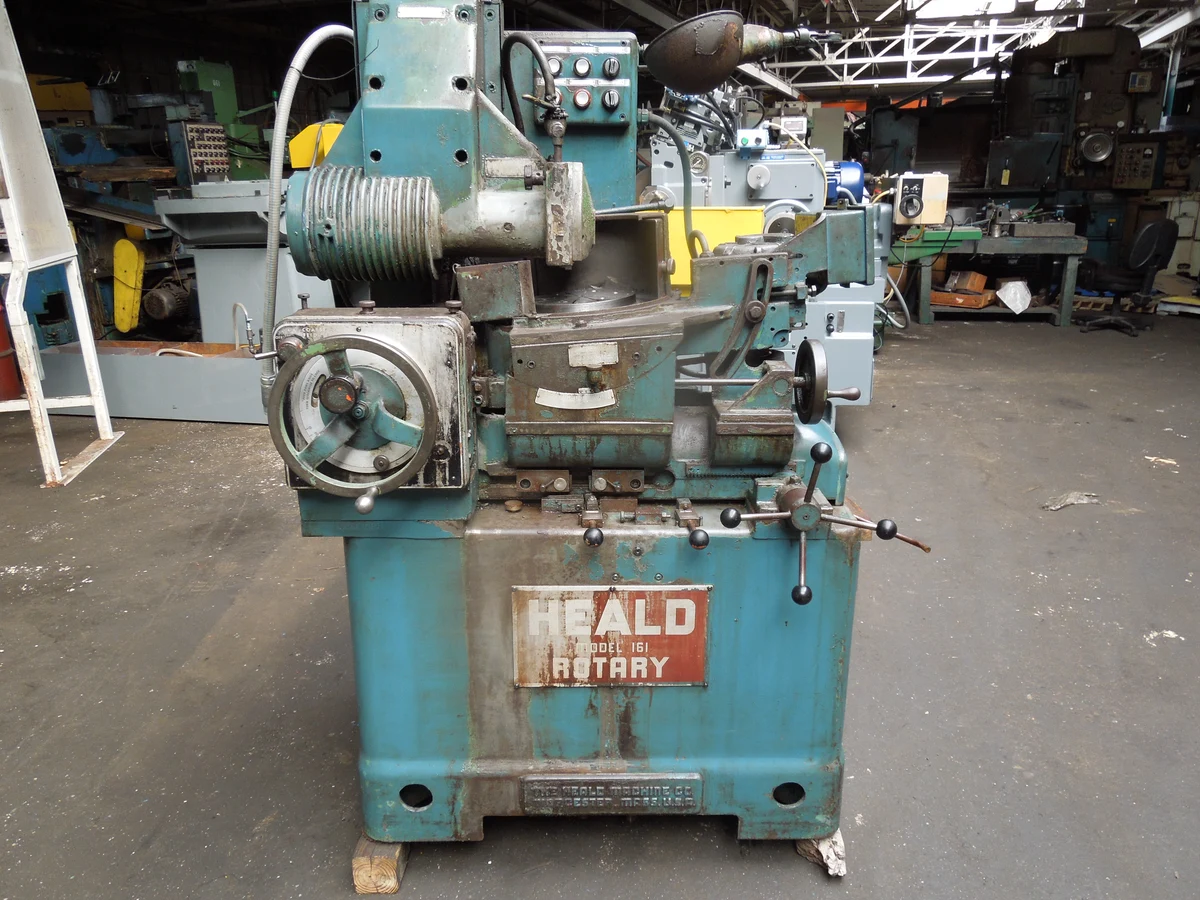

161 HEALD ROTARY SURFACEGRINDING MACHINE

S/N 43588

STANDARD CATALOG SPECIFICATIONS

CAPACITIES
Chuck face diameter................................ 8
Chuck magnetic diameter............................ 7
Swing inside coolant pan, maximum.................. 121/2
Standard wheel size................................ 7
Distance from top to chuck to center
of grinding spindle maximum, minimum............... 10,2 5/8
Maximum angle convex, concave................. 15 deg.,15 deg.
Table travel....................................... 61/4
Grinding stroke maximum............................ 4

SPEEDS FEEDS
Chuck speed........................................ 350RPM
Wheel speed........................................ 3600RPM
One turn of feed hand wheel........................ .05
Power feed adjustment..............................Variable

DRIVE
Wheel spindle motor...................... 1 1/2 HP ‑3600RPM
Chuck drive motor ....................... 1/2 HP ‑ 1200RPM
Hydraulic pump motor..................... 1/3 HP ‑ 1800RPM
Coolant pump motor....................... 1/6 HP ‑ 3600RPM

EQUIPMENT FEATURES
Coolant tank and pump.
8 Electro‑mag. chuck.
Angle adjusting hand wheel.
Tilt table.
Variable automatic wheel feed.
Variable chuck controls.
Attached electrical.
Power table.

GENERALDATA
Capacity of coolant tank...................... 9 1/2 gal
Base of machine on floor...................... 37 1/2x 29 1/4
Floor space with coolant tank................. 47x 58
Net weight.................................... 2,225lbs.
