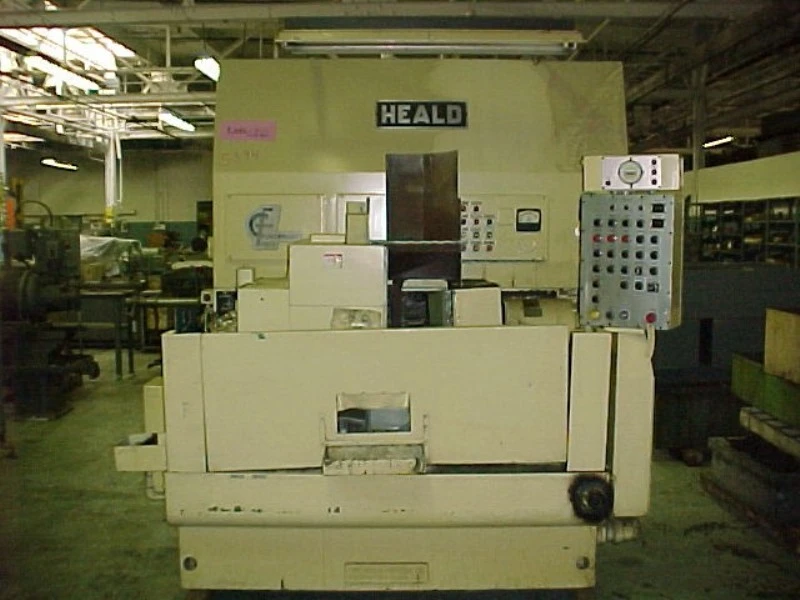

1CF-80 HEALD CENTERLESS ROLL TYPE ON CENTERINTERNAL GRINDER

1CF-80 HEALD CENTERLESS ROLL TYPE ON CENTER INTERNAL GRINDER

S/N 43082 Year: 1965

STANDARD CATALOG SPECIFICATIONS

CAPACITIES

Maximum outside diameter of work................... 4 1/2

Minimum outside diameter of work................... 1 1/4

Maximum length of work............................. 3

Minimum length of work............................. 1/2

Maximum swivel of work.............................30�

Center of wheel spindle from floor................. 41

SPEEDS FEEDS

Table travel

(Total including run-out)..........................8 max.

Wheel wear compensation

(.0001Increments).................................0004 on dia.

Work speed sat O.D................................. 400 SFPM

High force(adjustable)............................ 30 - 300 lbs.

DRIVE POWER REQUIREMENTS

Work head motor...............................1/2 HP @ 155 RPM

Wheel head motor for belt drive............... 7 1/2 HP @ 3600 RPM

Hydraulic pump motor.......................... 2 HP @ 1800 RPM

Coolant pump motors(2)....................... 3/4 HP 1/2 HP

Backing plate motor...........................1/6 HP @ 1800 RPM

GENERAL DATA

Overall height.....................................95 1/2

Length and width of base on floor.................. 68 x 49

Floor space (without coolant tank).................91 x 86

Floor space (with coolant tank).................... 109 x 86

Net weight of machine(approximate)................ 10,800 lbs.

Gross weight crated(approximate).................. 11,800 lbs.
Gross weight boxed (approximate)...................12,800 lbs.

EQUIPMENT FEATURES
Red Head grinding spindle, AFrame.
Single point diamond dresser.
Auto load – Unload.
All rolls.
External oscillator.

Specifications are deemed accurate, however, subject to verification or prior sale.
