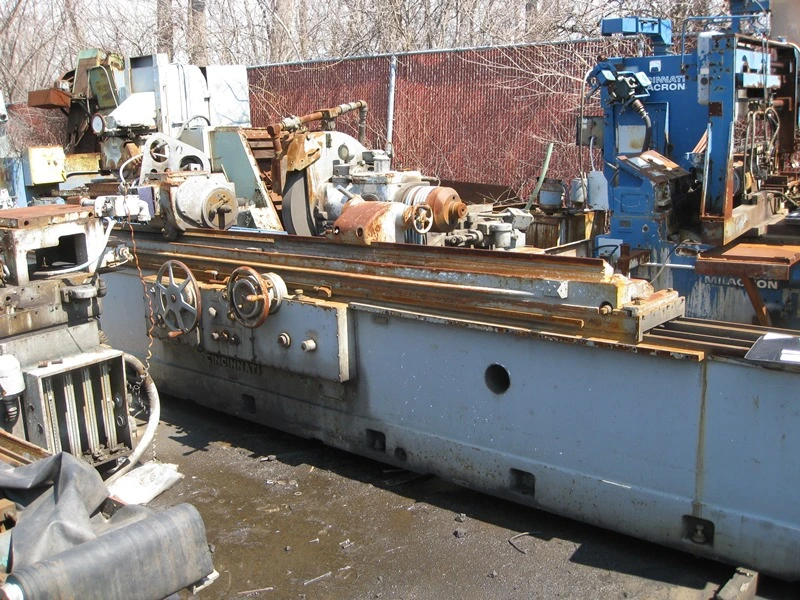

14 x 120 CINCINNATI PLAIN HYDRAULIC CYLINDRICAL GRINDER

14 x 120 CINCINNATI PLAIN HYDRAULIC CYLINDRICAL GRINDER
S/N 422D795-1

STANDARD SPECIFICATIONS
Maximum swing over table.................................................................14
Nominal distance between centards wheel head)to angle of....................6�
Swivel table graduated (away from wheel head) to angle of..............2�
Swivel table graduated (towards wheel head) taper per foot..............2 3/4
Swivel table graduated (away from wheel head) taper per foot......... 1
Diameter of spindle in grinding wheel head........................................35/8
Standard size grinding wheel...............................................................30x 4 x 12
Taper hole in head stock and foot stock spindles..................................No.12 B S
Range of work rotation speeds.............................................................50 to 170RPM
Range of table traverse rates.................................................................3 to 220 IPM
Table tarry adjustment..........................................................................0- 5 seconds
Hand table traverse-rate per revolution of hand wheel.......................1

EQUIPPED WITH
Hydraulic table.
30x 4 x 12 Wheel capacity.
Pick feed.
Vari-speed work head.
Screw type operated tail stock.
Table jog.
Slant table.

MOTORS CONTROLS
20 HP 220/440/3/60.
Freestanding electrical panel.
24,000 lbs. Approximate weight.
Balancer grinding wheel head.

Specifications are deemed accurate, however, subject to verification or prior to sale.
