GIUSTINA R242 S/N 421

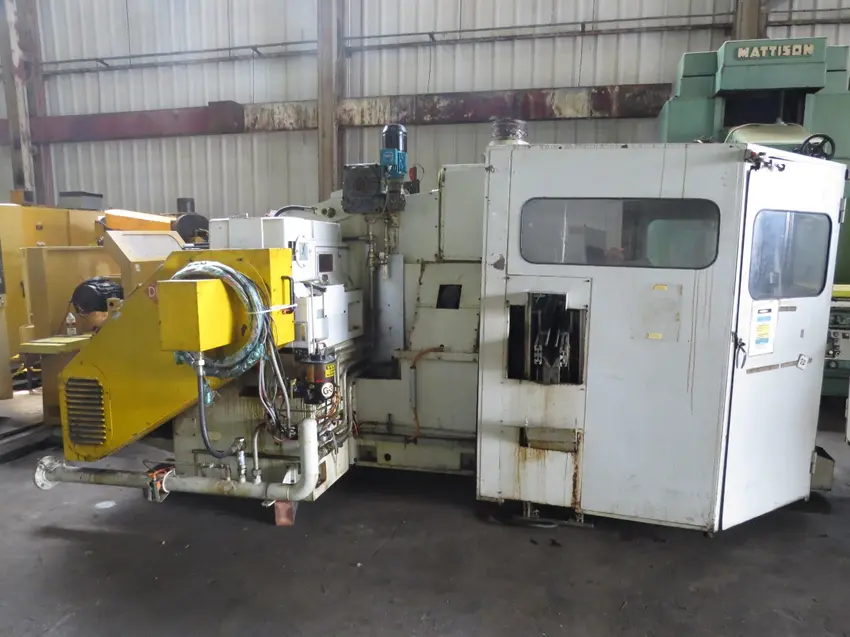

GIUSTINA R242 HORIZONTAL DOUBLE DISC GRINDER
S/N 421

STANDARD SPECIFICATIONS
Grinding Wheel Diameter……………………………………………..36”
Power…………………………………………………………………..75 KW
Control…………………………………………………………………CNC (Bosch)
Wheel Rotation Axis………………………………………………......Horizontal
Grinding Wheel Size, Usable Width…………………………………..3”
Grinding Wheel Size, Peripheral Speed……………………………….30ms
Spindle Motors………………………………………………………...75 KW
Grinding Feed Rate……………………………………………………0.1 – 1000 mm/min
Spindle Type…………………………………………………………...Moving Quill
Angular Contact Spindle Bearings……………………………………..ABEC-7(ISO4)
Slide Position Accuracy………………………………………………..0.001mm
Coolant Flow Rate……………………………………………………...600 1/min
Work Capacity Rotary………………………………………………….20-200 Dia. In.
Weight………………………………………………………………….30,865 LBS.

EQUIPPED WITH
Bosch CNC Control

Specifications are deemed accurate, however, subject to verification or prior sale.
