HEALD 1CF-91 42007

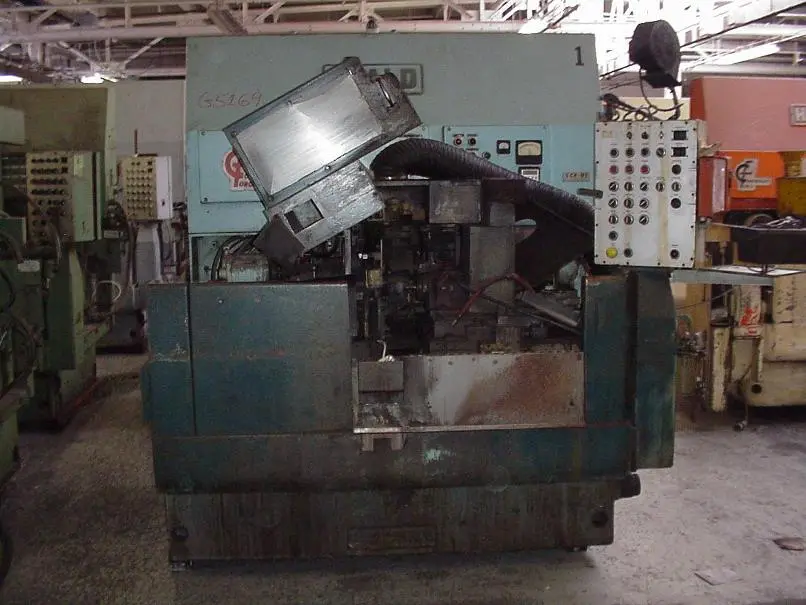

1CF‑91 HEALD INTERNAL BORE GRINDER

PRIVATE S/N 42007Year: 1965tc�\l 1 S/N 42007���� Year\:1965

STANDARD CATALOG SPECIFICATIONS
Maximum outside diameter of work................... 4 1/2
Minimum outside diameter of work................... 7/8
Maximum length of work............................. 2
Maximum swivel of work............................. 12 degrees
Center of wheel spindle from floor................. 40

SPEEDS FEEDS
Table travel (total including run‑out)............. 5 3/4
Wheel wear compensation:......0-.004 on dia. (.0001 increments)
Work speeds (std) .............266, 366, 487, 804, 1105 1473 RPM
High force(adjustable)............................ 30 ‑ 300 lbs.

DRIVE POWER REQUIREMENTS
Backing plate motor........................... 1/2 HP @ 520 RPM
Wheel head motor for belt drive............... 7 1/2 HP @ 3600 RPM
Hydraulic pump motor.......................... 2 HP @ 1800 RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP

GENERAL DATA
Overall height..................................... 95 1/2
Length width of base on floor.................... 68 x 49
Floor space (without coolant tank)................. 91 x 79
Floor space (with coolant tank).................... 109 x 79
Net weight of machine(approximate)................ 10,500#

EQUIPMENT FEATURES
Single point radius dresser.
Push button control panel.
Timers.
Magnetic work head.
Hydrostatic slides.
28,000 R.P.M. Red Head spindle.

Specifications are deemed accurate, however, subject to verification or prior sale.
