BROWN & SHARPE #5 414612

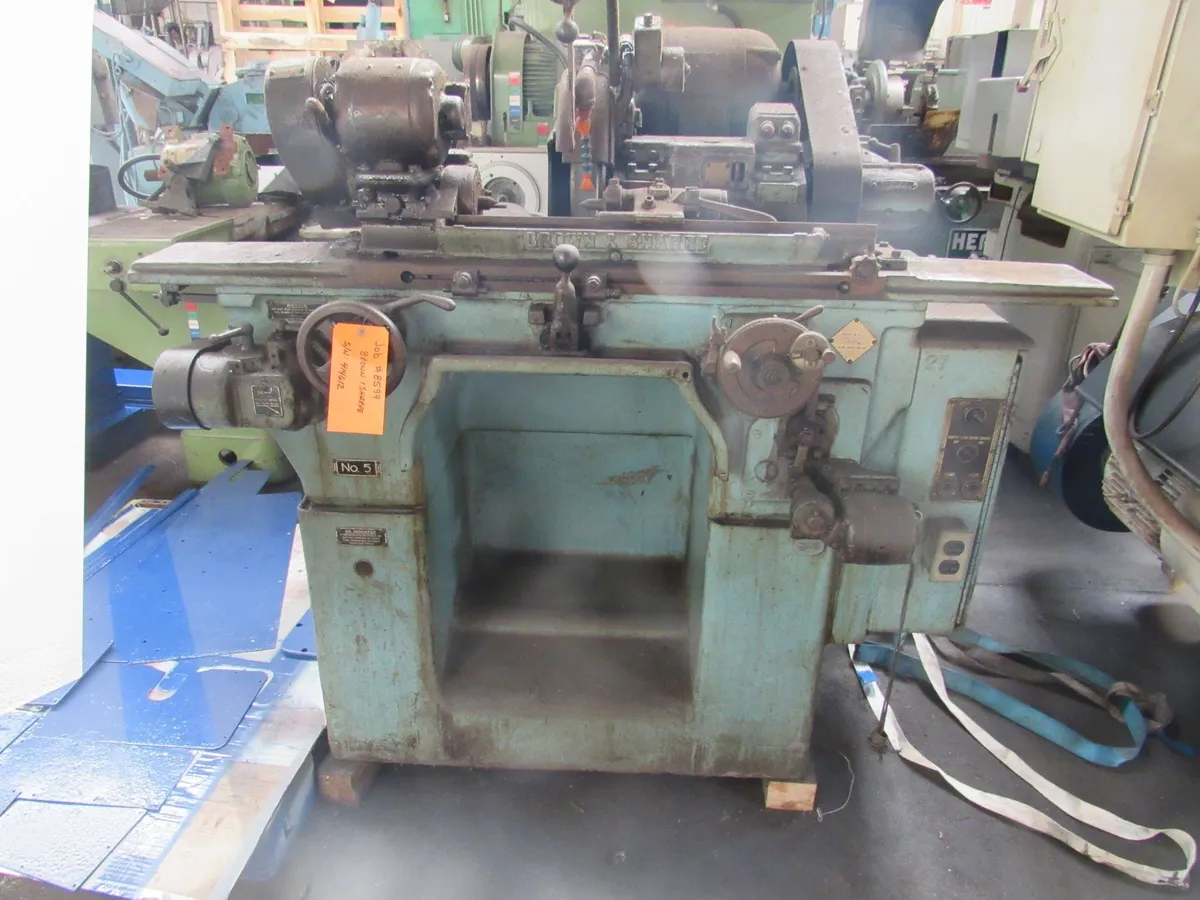

4 x 18 BROWN SHARPE NO. 5 PLAIN CYLINDRICAL GRINDER

PRIVATES/N 414612

PRIVATE STANDARD SPECIFICATIONStc� \l 1 STANDARD SPECIFICATIONS

PRIVATE CAPACITYtc� \l 2 CAPACITY
3 x 18
Center swing over table����������������� 3 31/32
Center distance��������������������.. 18”
Wheel������������������������. 14”
Grinds work to��������������������� 3” diameter

PRIVATE MOTORStc� \l 1 MOTORS
Wheel spindle���������������������. 3 HP
Head stock����������������������.. 1/4 HP
Table motor���������������������� 1/4 HP
Coolant pump motor������������������.. 1/4 HP

PRIVATE SPEEDStc� \l 1 SPEEDS
Wheel spindle���������������������.. 1772 RPM
Work speeds: 4 changes������������������ 202, 319, 505, and 800 RPM
(with 60 cycle motor)

PRIVATE WHEEL SPINDLEtc� \l 1 WHEEL SPINDLE
14” diameter x 1.5”width x 5” hole

PRIVATE COOLANT SYSTEMtc� \l 1 COOLANT SYSTEM
Capacity���������������������� 6 gallons
Pump motor��������������������.. 1/4 HP integral motor

PRIVATE DIMENSIONS WEIGHTtc� \l 1 DIMENSIONS WEIGHT
Dimensions��������������������� 67 x 45 x 60
Space occupied�������������������.. 105 cubic feet
Shipping weight (approximately)������������� 3,500 lbs.

EQUIPMENT FEATURES
Hydraulic table travel.
Internal coolant.
Manual tail stock.
Attached electrical.
Rapid Advance.
Wheel spindle reciprocating.

Specifications aredeemed accurate, however, subject to verification or prior sale.
