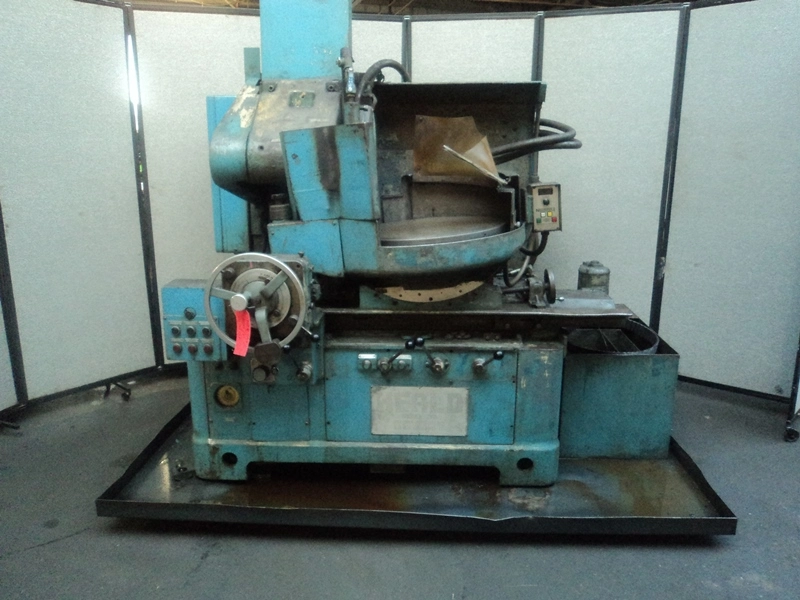

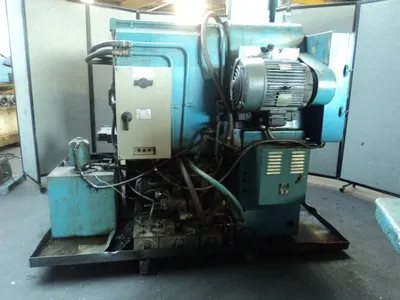

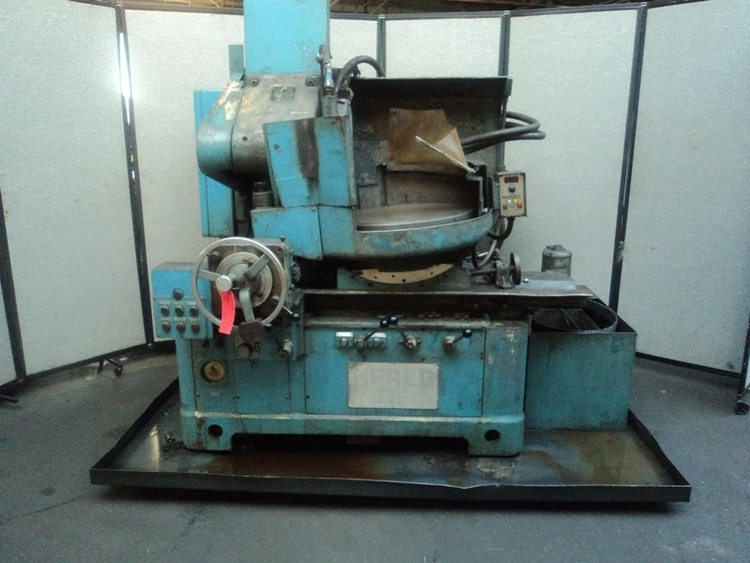

361-24 HEALD ROTARY SURFACE GRINDER

361-24 HEALD ROTARY SURFACE GRINDER
S/N 37938

STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24
Swing inside coolant .............................. 30
Vertical range (full wheel) ....................... 12
Convex.................................................17 Degrees
Concave................................................10 Degrees
24Chuck.............................................. 32 - 85 RPM
Table speeds - Rapid traverse.................. 20 FPM
Rapid traverse........................................ 0 - 15 FPM

MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM

OVERALL DIMENSIONS
Floor space with coolant tank...................... 115 x 79
Approximate net weight............................. 13,000 lbs.

EQUIPPED WITH
24 Diameter spiral pattern mag chuck - Convex - Concave
14 Diameter wheel - Hydraulic table
11/2 Wide wheel face - Chuck Control for chuck
30” Swing Inside Guards
Attached Electrical

Specifications are deemed accurate, however, subject to verification or prior sale.
