230-10 CINCINNATI TWIN-GRIP GRINDER 3590C005U-0015

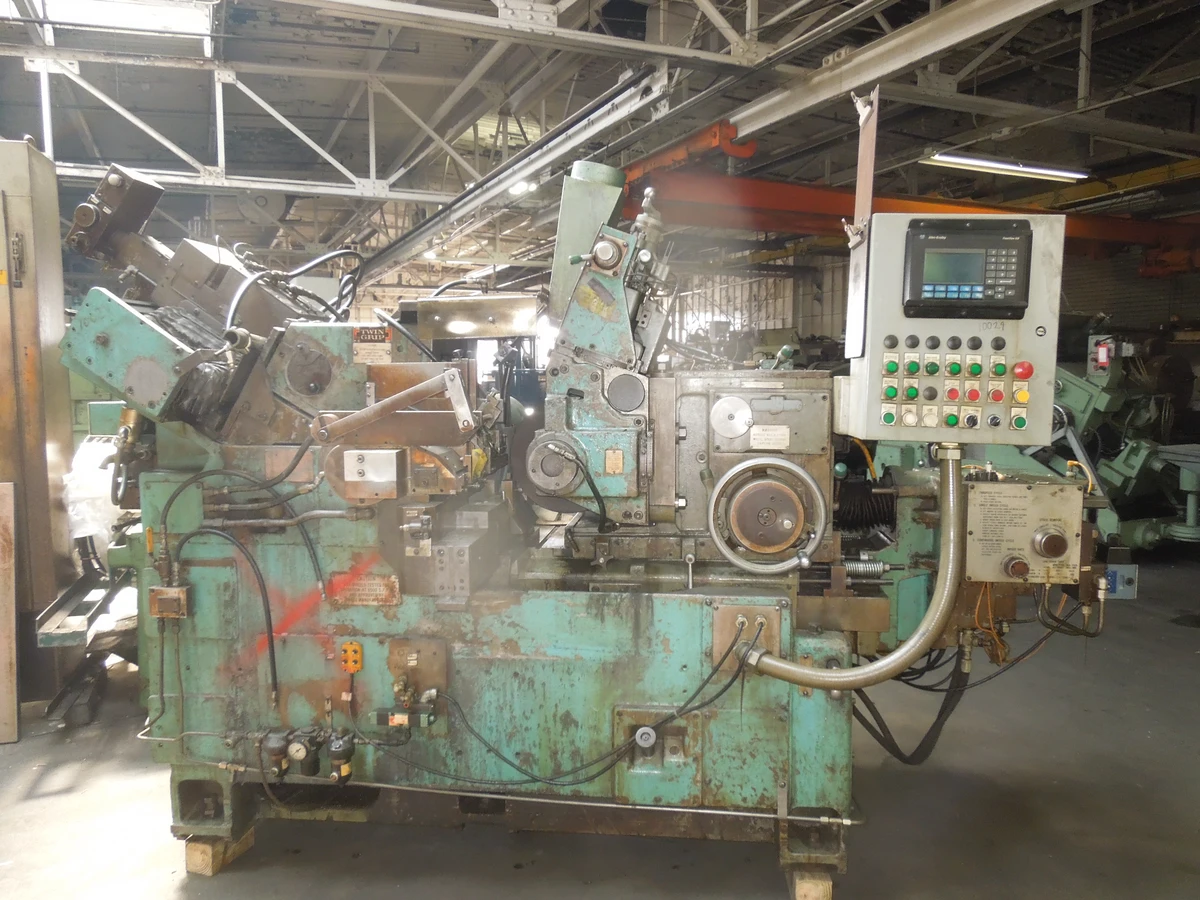

230‑10 CINCINNATITWIN‑GRIP GRINDER

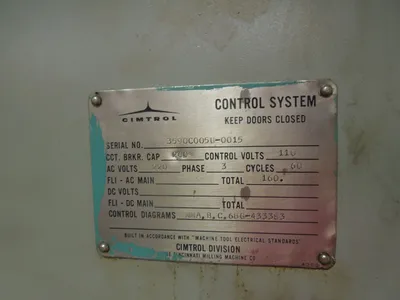

S/N 3590C005U-0015 Year: 1968

PRIVATE
STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed infeed work rests......... 1/4 to 4 dia.

WHEELS
Grinding wheel............widths up to 10, 12 hole ‑ 24 dia.
Regulating wheel..........widths up to 10, 5 hole w/2 C.B.
in back. 1 1/2 C.B. in front ‑ 12 dia.

DRIVE
Grinding wheel drive................................... 30 HP
Regulating wheel drive motor................... 1 1/2 HP

REGULATING WHEEL SPEEDS
Number................................................ infinite
Range..........................................11 to 310 RPM

SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in.........................000050

CUTTING FLUID EQUIPMENT
Individually motor driven cutting fluid pump
capacity............................................. 50 gal/min.
Cutting fluid tank capacity.................... 150 gallons
WHEEL TRUING EQUIPMENT
Grinding wheel ‑ Hydraulic wheel profile diamond truing unit with auto diamond advance.
Regulating wheel ‑ Hydraulic profile regulating wheel truing unit.
Diamonds are not included as standard equipment.

FLOOR SPACE
Standard machine................................... 95 x 127 1/2

APPROXIMATE WEIGHTS DATA
Net weight.........................................18,000 lbs.

EQUIPMENT FEATURES
Cincinnati compensation.
Hydraulic profile grinding regulating wheel dressers.
Standard transmission.
Twin Grip machine.

Specifications are deemed accurate, however, subject to verification or prior sale.
