CINCINNATI 430-10 EC 35432A980-0001

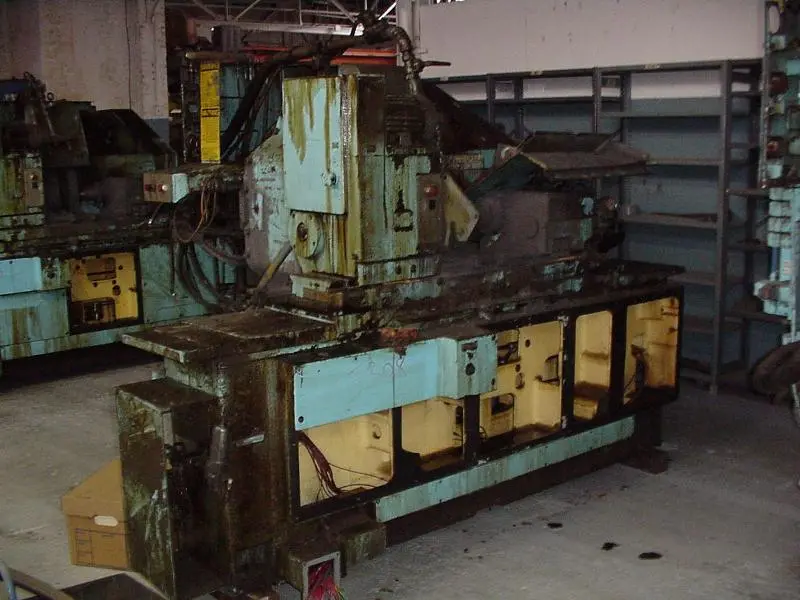

430-10 CINCINNATI EC PLUNGE GRINDER
S/N 35432A980-0001 Year:1980

STANDARD SPECIFICATIONS

Work Piece Capacity
Nominal work piece diameter………………………………………… 10
Actual swing diameter over table..…………………………..……….. 10.93
Nominal work piece length………………………………..………….. 18
Actual work piece length………………………………..………….…. 20

Maximum Work Piece Weight
Hydraulic type footstock…………………………………………….. 350 lbs.

Wheel Head
Grinding wheel diameter(new)………………………………………. 36
Grinding wheel diameter(worn)……………………………………… 24
Collet hole diameter……………………………….………………….. 20
Grinding wheel width……………………………………………….… 9 1/2
Grinding wheel speed (opt.)surface motor……………..………..…… 8500 ft./min25 HP

Sliding Table
Max. work piece length……………………………..……………..….. 20
Total table traverse/rev. ofhex wrench……………………………..… 1

Swivel Table
Nominal work piece length………………………………………….... 18
Maximum swivel counterclockwise……………..……………………. 11�
Maximum swivel clockwise…………………………………………... 3�
Taper (maximum on diameter)per foot……….………………………. 4.67
Head Stock
Work piece center…………………………………………….. No. 14 Jarno
Head stock spindle – standard A.C. motor………...….……… 34, 49, 100, 144, 206 RPM
Motor –A.C…………………………………………………... 1 HP
Spindle nose (optional)live…………………………………... Type A-1 size 6

Foot Stock
Work piece center……………………………………………... No. 14 Jarno
Center movement – hydraulic type…………………….………. 2

EQUIPMENTAND FEATURES
Behind wheel hydraulic profile truing.
Auto balancing grinding wheel spindle.
8500 Surface feet per minute.
Hydraulic tail stock.
Free standing, 2 door electrical panel.
Separate, external hydraulic unit.

Specifications are deemed accurate, however, subject to verification or prior sale.
