CINCINNATI 10x18 - 90 35432A979-0003

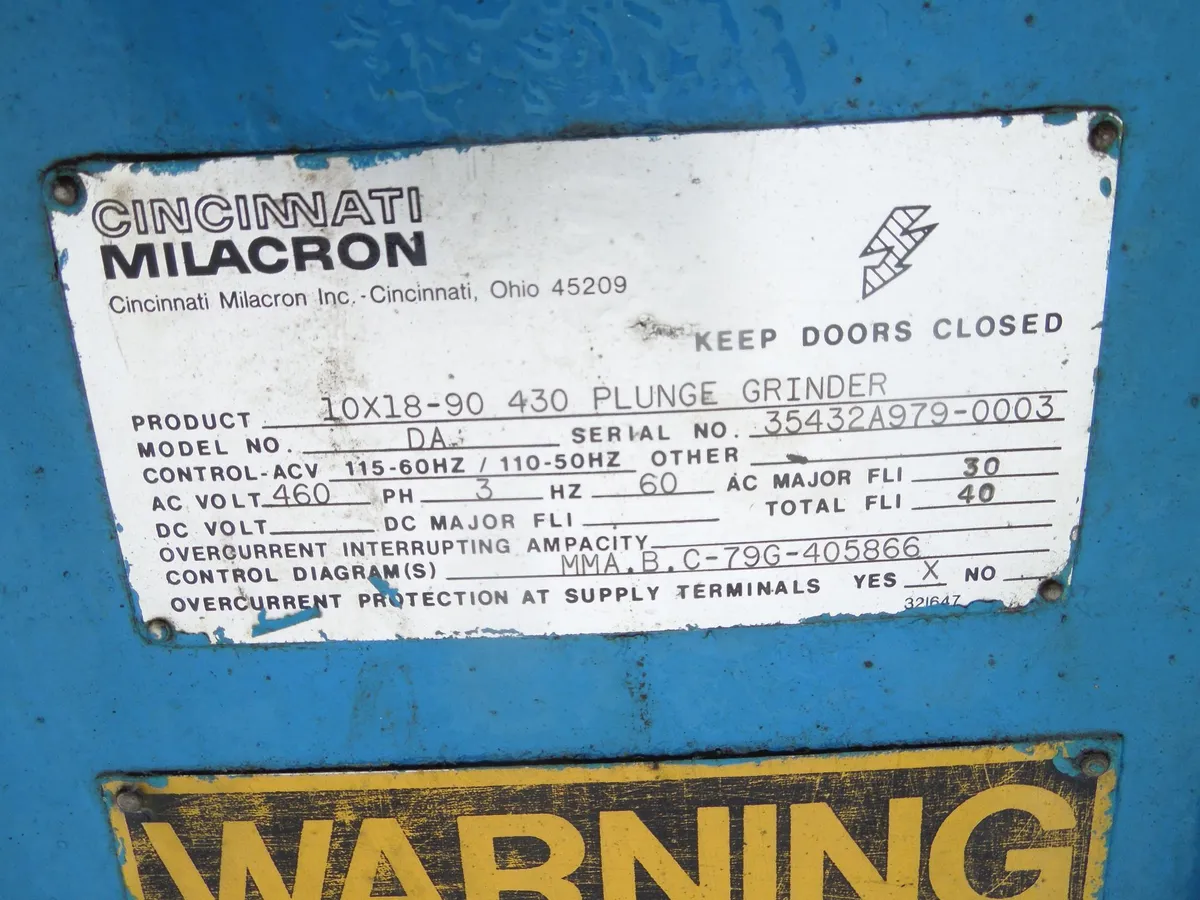

10X18 430-10CINCINNATI EC PLUNGE GRINDER

S/N 35432A979-0003 Year:1979

STANDARDSPECIFICATIONS

WorkPiece Capacity
Nominal work piecediameter………………………………………… 10
Actual swing diameter overtable..…………………………..……….. 10.93
Nominal work piecelength………………………………..………….. 18
Actual work piecelength………………………………..………….…. 20

MaximumWork Piece Weight
Hydraulic type footstock…………………………………………….. 350 lbs.

Wheel Head
Grinding wheel diameter(new)………………………………………. 24” x 8”
Collet holediameter……………………………….………………….. 20
Grinding wheelwidth……………………………………………….… 9 1/2
Grinding wheel speed (opt.)surface motor……………..………..…… 8500 ft./min25 HP

SlidingTable
Max. work piecelength……………………………..……………..….. 20
Total table traverse/rev. ofhex wrench……………………………..… 1

SwivelTable
Nominal work piecelength………………………………………….... 18
Maximum swivelcounterclockwise……………..……………………. 11�
Maximum swivelclockwise…………………………………………... 3�
Taper (maximum on diameter)per foot……….………………………. 4.67eadStock
Work piececenter…………………………………………….. No. 14 Jarno
Head stock spindle – standardA.C. motor………...….……… 34, 49, 100, 144, 206 RPM
Motor –A.C…………………………………………………... 1 HP
Spindle nose (optional)live…………………………………... Type A-1 size 6

FootStock
Work piececenter……………………………………………... No. 14 Jarno
Center movement – hydraulictype…………………….………. 2

EQUIPMENTAND FEATURES
Behind wheel hydraulicprofile truing.
Auto balancing grinding wheelspindle.
8500 Surface feet per minute.
Hydraulic tail stock.
Free standing, 2 doorelectrical panel.
Separate, external hydraulicunit.
Plunge / Table traverse.
HMI Panelview Plus 1000 ABcontrols.
Lube system.
Free standing electrical.
Swivel table.
Coolant tank pump.
Balancer spindle.
