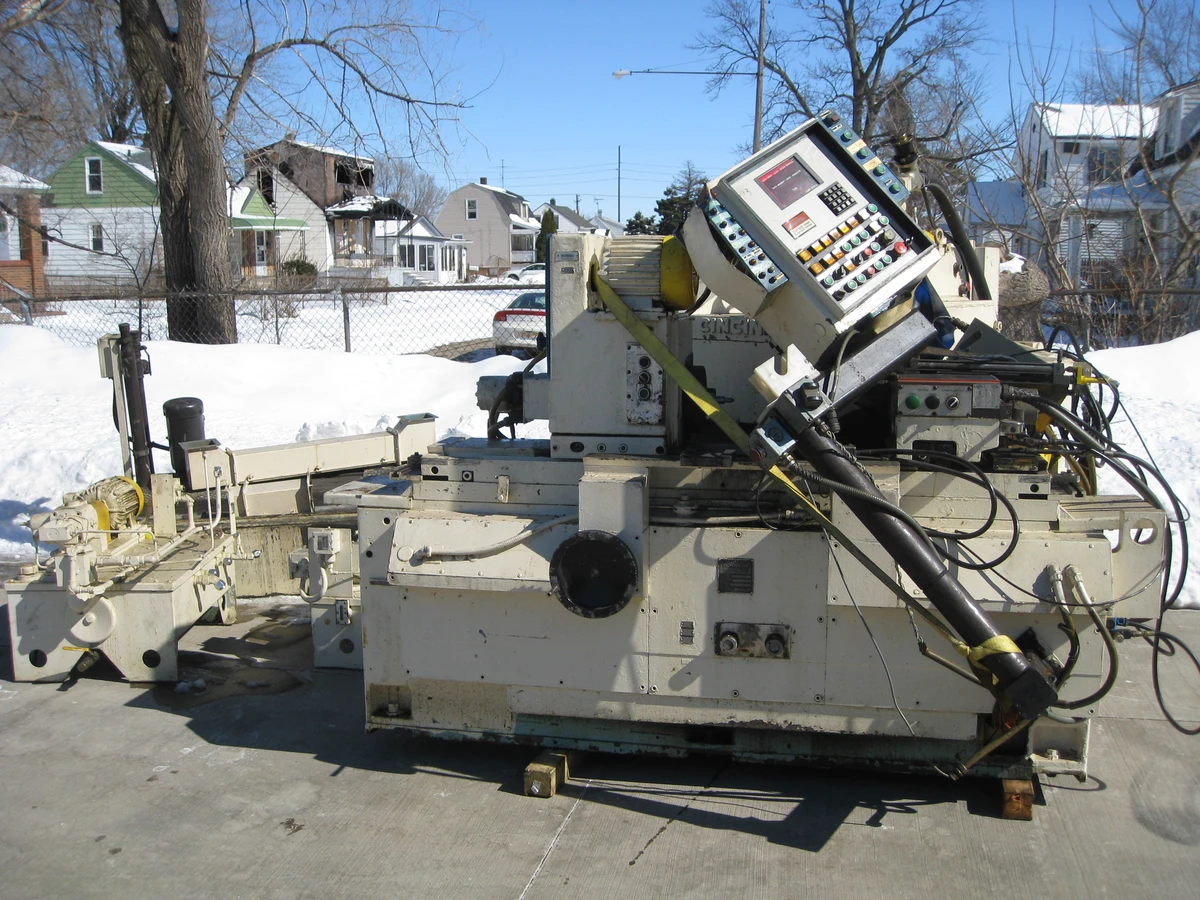

10 x 18 CINCINNATI 30 ANGLE HEAD MODEL 430-DA

10 x 18 CINCINNATI 30 ANGLE HEAD MODEL 430-DA
S/N 35432A35V-4 Year: 1969

STANDARD SPECIFICATIONS

WORK PIECE CAPACITY
Maximum work piece diameter………………………………….10”
Maximum diameter over table…………………………………...10.93”
Nominal work piece length………………………………………18”

WHEEL HEAD
Grinding wheel diameter(new)………………………………….. 36”
Grinding wheel diameter (worn)0�machines…………………… 24”
30� and 45�machine…………………………………….. depends on work piece configuration
Collet hole diameter……………………………………………… 20”
Grinding wheel width……………………………………………..0.5” to 9.5”
Grinding wheel speed ft./min. surface speed……………………… 6500 or 8500
Motor………………………………………………………………. 25, 30 HP

SLIDING TABLE
Maximum work piece length………………………………………20”,30”, 40”
Total table travel……………………………………………………28”,38”, 48”
Table traverse in./rev. of hex wench……………………………….. 1”
Table traverse in./rev. of hand wheel………………………………. 0.200”

SWIVEL TABLE
Maximum work piece length……………………………………….20”,30”, 40”
Maximum swivel counter clock wise………………………………..11�, 9�, 9�
Maximum swivel clockwise………………………………………..3�,3�, 2�

HEAD STOCK
Work piece center………………………………………………. No. 14 Jarno
Head stock spindle speeds – A.C. motor–standard…..……….. 34, 49, 70, 100, 144, 206 RPM
Head stock spindle speeds – A.C. motor–optional……………. 40, 58, 85, 119, 171, 245 RPM

FOOT STOCK
Work piece center…………………………………………….… No. 14 Jarno
Center movement – lever screw type…………………….…... 1.75”
Center movement – hydraulic type………………………….…...2” or 5”
Center force – lever screw type…………………………….… 100 lbs. to 200 lbs.
Center force – hydraulic type………………………………….… 39 lbs. to 392 lbs.

WHEEL HEAD IN FEED
Total feed stroke (stock removal)………………………… 0 to 0.999” in increments of 0.001”
Medium in feed stroke…………………………………….. 0 to 0.099” in increments of 0.001”
Fine feed stroke…………………………………………… 0 to 0.0099”in increments of 0.0001”
Truing or pick feed compensation………………… 0 to 0.00999” (.00003” minimum increment)
Rapid hydraulic stroke…………………………………… 4”
Rapid rate – max. rate push button in./min………………. 0.600” to 1.875”
Gap eliminator rate in./min……………………………….0.1123” to 0.2250”
Coarse feed rate in./min…………………………………..0.030”to 0.150”
Medium feed rate in./min…………………………………0.014” to 0.075”
Fine feed rate in./min……………………………………..0.00075”to 0.01500”
Tarry time – seconds……………………………………… 0.7 to10.0 (extendable to 20)
Dead pass table reversals –number………………………. 0 to 7

HYDRAULIC TANK
Tank capacity……………………………………………………… 25 gallons
Oil specifications – C.M. specification No………………………… P-45
Vicosity (S.U.S@ 100� F)…………………… 95-115
Main pump capacity………………………………………………..12 gallons/min.
500 P.S.I. pump capacity…………………………………………..1.5 gallons/min.
Sump pump capacity……………………………………………….5.4 gallons/min.
Hydraulic pump motor…………………………………………….. 3 HP or 5 HP

WAY LUBRICATION TANK
Tank capacity………………………………………………………. 6 or 3.1 gallons
Oil specifications – C.M. specification No…………………………. P-50
Viscosity (S.U.S.@ 100� F)………………….. 900 – 1100
Pump capacity……………………………………………………….4 gallons/min.
Pump motor…………………………………………………………. 0.25 HP

COOLANT TANK
Tank capacity……………………………………………………….. 100 or 150 gallons
Pump capacity………………………………………………………. 35 or 55 gallons/min.
Pump motor…………………………………………………………. 0.25 HP or 0.5 HP

Specifications are deemed accurate, however, subject to verification or prior sale.
