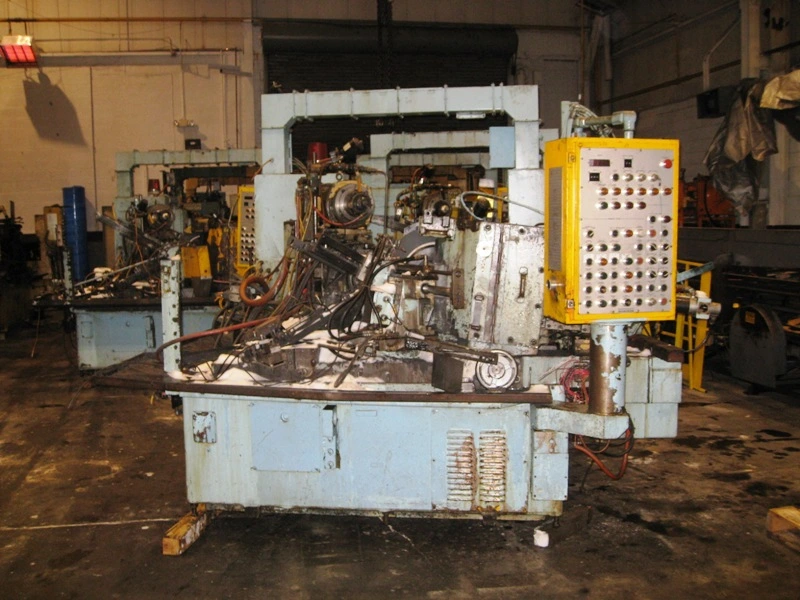

#2 MD CINCINNATI CHUCKER TYPE N BASE

#2 MD CINCINNATI CHUCKER TYPE N BASE
S/N 3515G0180-0011

STANDARD SPECIFICATIONS

Capacity (work diameter range)
- Grind (maximum)…………………………………………… 10
(minimum)………………………………….…………. 2

Wheel Head Adjustments
Rapid advance movement (maximum)……………………….. 1 1/2
(minimum)……………………….. 3/16

Maximum Infeed Movement
Dual rate (standard)…………………………………………… .060
Triple rage (hydraulic)………………………………………... .250
Electronic……………………………………………………… .375
Infeed rate adjustment…………………………………………. .005 to1
Tarry adjustment………………………………………………. .6 to 12sec.

STANDARD SPECIFICATIONS

Head Stock Adjustments
Swivel plate -
Plain machine (w/auto loader)………………………………… 0 up to 30 Degree
(w/o auto loader)………………………….…… 0 to 45 Degree
Angular machine (w/auto loader)…………………………….. --
(w/o auto loader)…………………………..--
Head stock movement parallel to swivel plate…………….…. 4 3/4
Vertical movement to eccentrically mounted roller
under cross slide…………………………………………….… 1/2
Longitudinal movement of head stock through
cross slide screw………………………………………………. 13 1/8
Sub-slide movement parallel to swivel plate - plain…………… 47/8
angular………… --

Grinding Wheel
Grinding wheel diameter……………………………………… 24”

Motors and Drives
Grinding wheel motor…………………………………………. 10/20 HP
Head stock motor………………………………………………. 1.5 HP
Hydraulic pump motor…………………………………………. 3 HP
Cutting fluid pump motor………………………………………. 1/4 HP

STANDARD SPECIFICATIONS

Cutting Fluid System
Capacity of cutting fluid pump…………………………………… 30 GPM
Capacity of cutting fluid tank…………………………………….. 41.5 gallons

Weight - Approx. Domestic Shipping
Plain 'N' bed……………………………………………………… 15,000 lbs.

EQUIPMENT FEATURES
Behind the wheel diamond roller dresser.
Stepper motor infeed.
12,000 SFPM.
Standard infeed.
Stepper motor for hydraulic infeed.
24” Diameter grinding wheel.
Hydraulic parts loader.
1910 RPM spindle.
