Used 1974 CINCINNATI #1 MICROCENTRIC | GRINDERS, CHUCKING

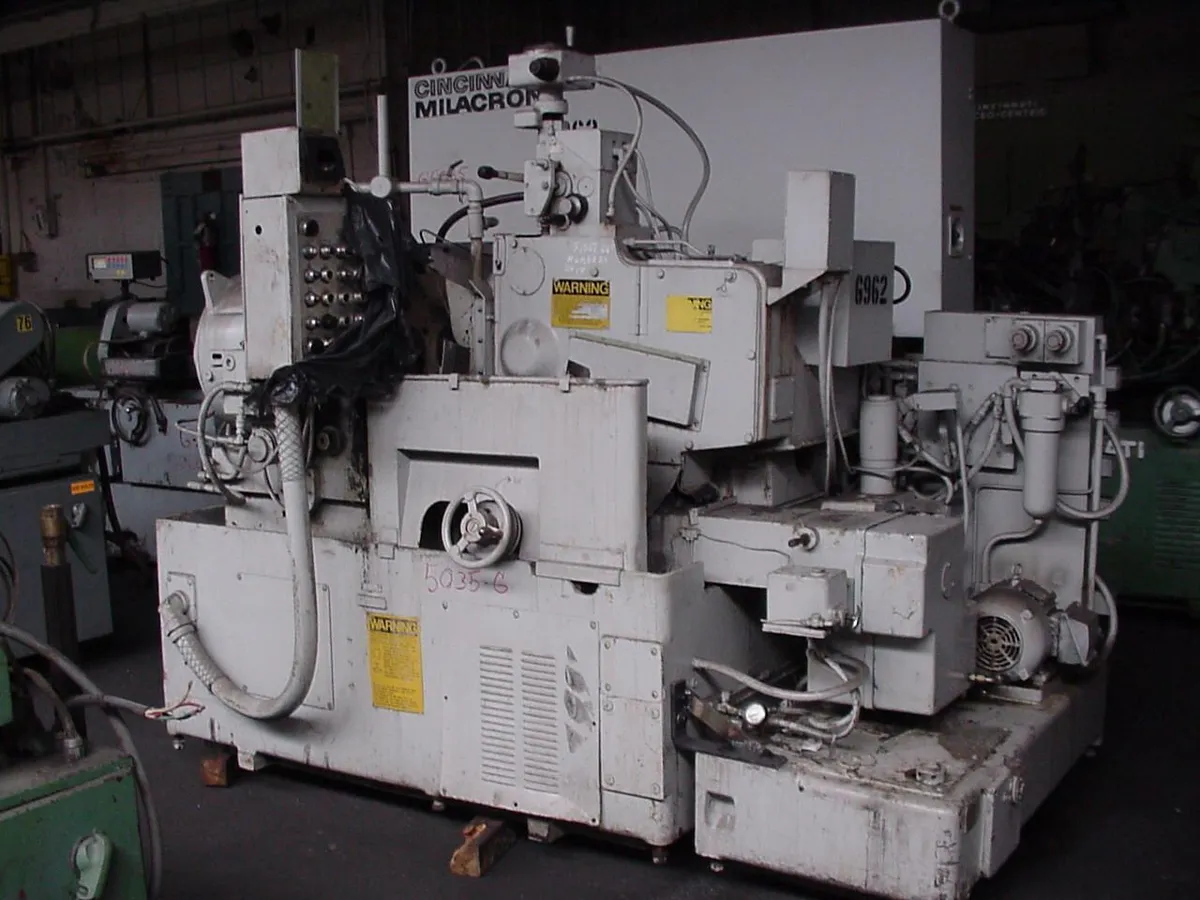

#1 DE CINCINNATI MICRO CENTRIC CHUCKING GRINDER
WITH DOUBLE INDEXING HEAD

S/N 35153HN74-0006 Year: 1974

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Work diameter range (Full wheel).............. 4"
Wheel head adjustments:
Rapid advance movement (Min Max).............. .187" 1.50"

INFEED MOVEMENT (MAX)
Dual rate (standard).......................... .06"
Triple rate (extra cost)...................... .250"
Infeed rate adjustment........................ 0.005" to 1"

HEADSTOCK ADJUSTMENTS
Head stock movement parallel to
swivel plate.................................. 5"
Vertical movement on eccentrically
mounted rollers under cross slide............. .050"
Longitudinal movement of head stock
movement through cross slide screw............ 13.12"
Sub slide movement perpendicular to
cross slide movement.......................... 4.88"

GRINDING WHEEL................. 20" Dia. x 3" Wide x 12" Hole

MOTORS & DRIVES
Grinding wheel motor (HP [kw]/RPM)............ 20 HP (14,9kw)
.............................................. @ 1500 or 1800 RPM
Head stock (HP [kw]/RPM)...................... 1.5 HP (1,1kw)
.............................................. @ 750 or 900 RPM
Hydraulic pump motor.......................... 3 HP (2,2kw)
Cutting fluid pump motor...................... .25 HP (0,2kw)
Grinding wheel & head stock drives............ Multi. V belts

CUTTING FLUID SYSTEM
Capacity of cutting fluid pump................ 30 GPM

HEIGHT OF GRINDING WHEEL
Distance from floor to centerline............. 47.38"

FLOOR SPACE
With cutting fluid tank....................... 105" x 81.75"

SHIPPING DATA
Net weight.................................... 12,200 lbs.
Shipping weight (domestic).................... 12,150 lbs.
Shipping weight (export)...................... 13,350 lbs.
Size of case (export)......................... 114" x 84" x 84"

EQUIPMENT & FEATURES
Profile above wheel truing.
Jog work head.
Double indexing work head.
Separate push button station.
Grind cycle timer.

G.C.H. carries many Chucking or Microcentric Grinders in stock along with all component & replacement parts.

Specifications are deemed accurate, however, subject to verification or prior sale.
