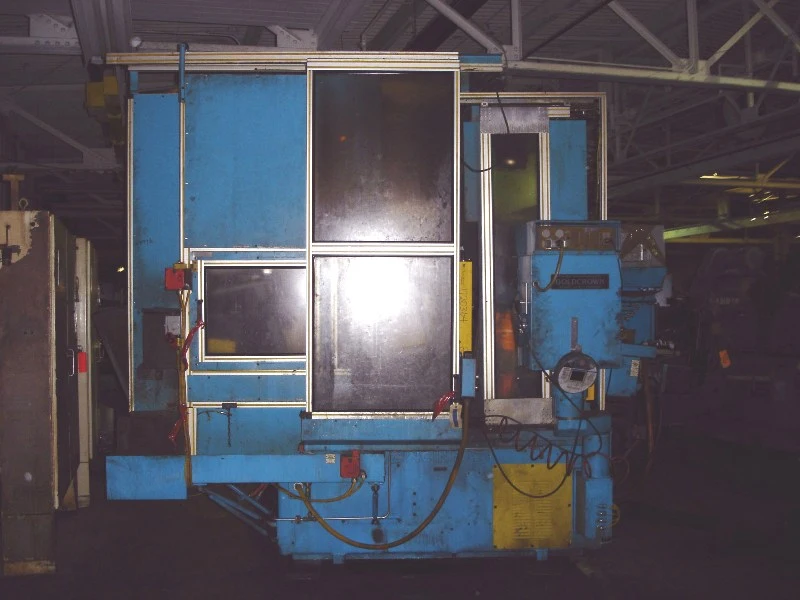

#2 CINCINNATI LANDIS GOLDCROWN MICROCENTRIC MODEL N GRINDER

#2 CINCINNATILANDIS GOLDCROWN MICROCENTRIC MODEL N GRINDER

S/N 35152HN5V-0006Year: 1969

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Work diameter range (Full wheel).............. 2 ‑ 19
Wheel head adjustments: Presently locked out

IN FEED MOVEMENT (MAX) By Cross Slide Servo
Dual rate(standard).......................... .06
In feed rate adjustment........................0.005 to 1/min

TARRY ADJUSTMENT..............................Infinite

HEAD STOCK ADJUSTMENTS
Swivel plate.................................. 0 to 45 degrees
Head stock movement parallel to
swivel plate.................................. 4.75
Longitudinal movement of head stock
movement through cross slide screw............ 13.125
Sub slide movement‑perpendicular to
cross slide movement.......................... 4.875

GRINDING WHEEL................. 24 Dia. x 2.25 Wide x 12 Hole

MOTORS DRIVES
Grinding wheel motor (HP [kw]/RPM)............ 20 HP (14,9 kw)
..............................................@ 1500 or 1800 RPM
Head stock (HP [kw]/RPM)...................... 1.5 HP (1,1 kw)
..............................................@ 1500 or 1800 RPM
Hydraulic pump motor.......................... 3 HP (2,2 kw)
Cutting fluid pump motor...................... .25 HP (0,2 kw)
Grinding wheel head stock drives............ Multi. V belts

HEIGHT OF GRINDING WHEEL
Distance from floor to center line............. 47.38

FLOOR SPACE
With cutting fluid tank....................... 105 x 81.75

SHIPPING DATA
Net weight.................................... 13,150 lbs.
Shipping weight(export)...................... 13,350 lbs.
Size of case (export).........................114 x 84 x 84

EQUIPMENT FEATURES
Separate hydraulic unit.
Auto lube.
Attached electrics.
Swiveling head stock.
SBS Balancer.
Heavy duty work head.
24 Grinding wheel.
20 HP Spindle motor.
Light curtain safety.
Servo feed and ball screw cross slides.
MD style cartridge wheel spindle 24 wheel, 8500 SFPM.
Modicon PLC.
Telemecanique drives.
Seco HC Flux Vector drive.
Control Gauge 900 amplifier probes.
Panel-Mate HMI.
Load controls /load monitor.
Cincinnati rotary diamond dresser with Servo compensation.
