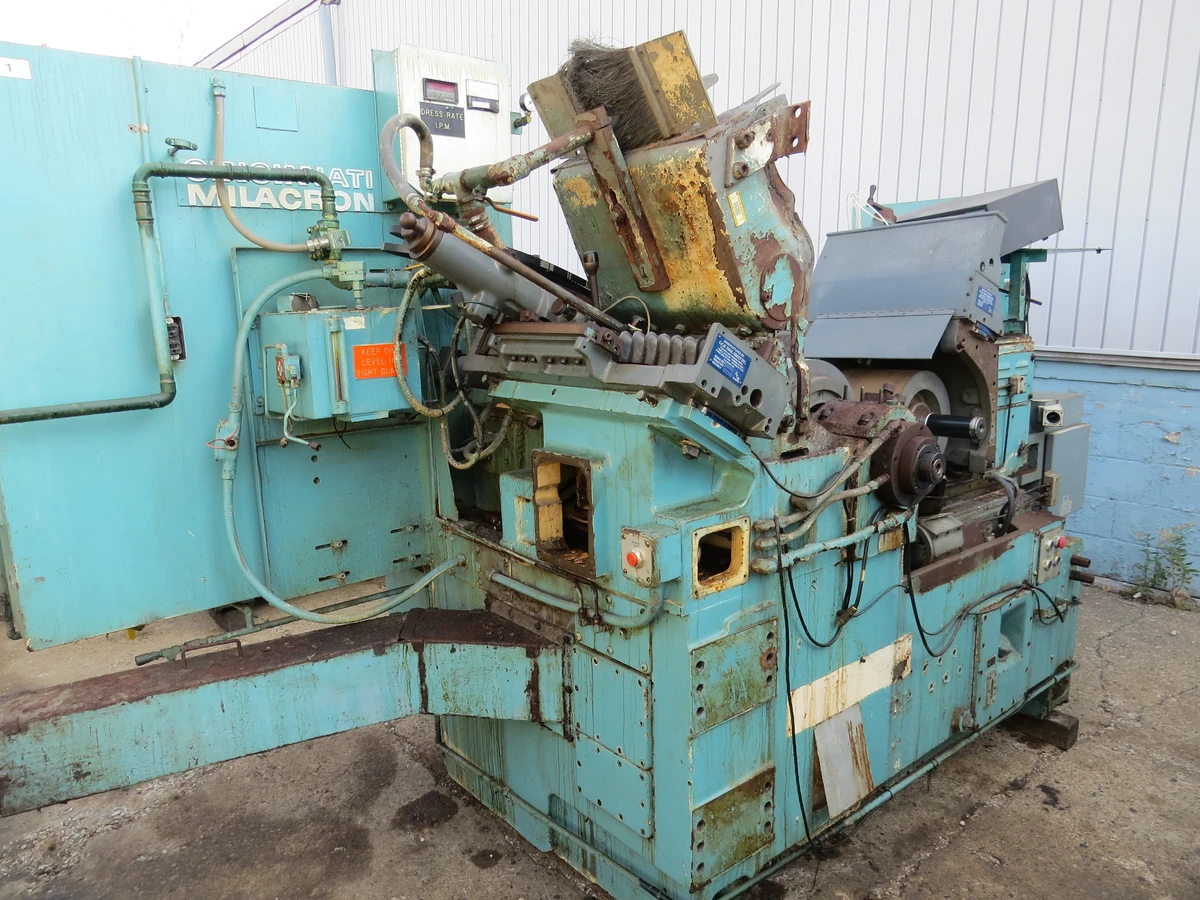

Cincinnati #230-10 Centerless Grinder, SBS Balancer, Internal Hydraulics, Attached Electrical Panel
230 10 CINCINNATI TWIN GRIP GRINDER
S/N 350800079-0034 YEAR: 1979
STANDARD CATALOG SPECIFICATIONS
CAPACITY
Standard thru feed & infeed work rests......... 1/4" to 4" dia.
WHEELS
Grinding wheel............ widths up to 10", 12" hole 24" dia.
Regulating wheel.......... widths up to 10", 5" hole w/2" C.B.
in back. 1 1/2" C.B. in front 12" dia.
DRIVE
Grinding wheel drive........................... 30 HP
Regulating wheel drive motor................... 1 1/2 HP
REGULATING WHEEL SPEEDS
Number......................................... infinite
Range.......................................... 11 to 310 RPM
SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in........................ .000050"
CUTTING FLUID EQUIPMENT
Individually motor driven cutting fluid pump
capacity....................................... 50 gal/min.
Cutting fluid tank capacity.................... 150 gallons
WHEEL TRUING EQUIPMENT
Grinding wheel Hydraulic wheel profile diamond truing unit.
Regulating wheel Hydraulic profile regulating wheel truing unit.
Diamonds are not included as standard equipment.
FLOOR SPACE
Standard machine................................... 95" x 127 1/2"
APPROXIMATE WEIGHTS & DATA
Net weight......................................... 13,200 lbs.
EQUIPPED WITH
Manual comp GW / truing unit.
Manual / cylinder RWD.
SBS Balancer.
Airtronics infeed unit.
Goldcrown servo reg.
Gib / gib slides.
Internal hydraulics.
Attached electrical.
My Lube – 21 lube system.
Specifications are deemed accurate, however, subject to verification or prior sale.
