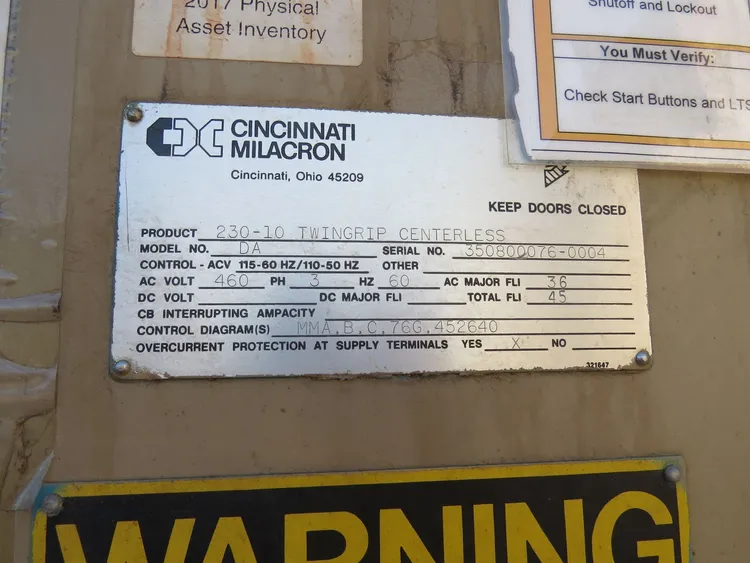

CINCINNATI #230-10 350800076-0004

230‑10 CINCINNATITWIN‑GRIP GRINDER

S/N 350800076-0004 Year: 1976

PRIVATE
STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed infeedwork rests......... 1/4 to 4 dia.

WHEELS
Grinding wheel............widths up to 10, 12 hole ‑ 24 dia.
Regulating wheel..........widths up to 10, 5 hole w/2 C.B.
in back. 1 1/2 C.B. infront ‑ 12 dia.

DRIVE
Grinding wheeldrive........................... 30 HP
Regulating wheel drivemotor................... 1 1/2 HP

REGULATING WHEEL SPEEDS
Number.........................................infinite
Range..........................................11 to 310 RPM

SIZING ADJUSTMENT
Accurate adjustment ofregulating wheel slide by in feed
hand wheel graduatedin........................ .000050

CUTTING FLUID EQUIPMENT
Individually motor drivencutting fluid pump
capacity.......................................50 gal/min.
Cutting fluid tankcapacity.................... 150 gallons

PRIVATE
WHEEL TRUING EQUIPMENT
Grinding wheel ‑ Hydraulic wheelprofile diamond truing unit.
Regulating wheel ‑ Hydraulicprofile regulating wheel truing unit.
Diamonds are not included as standardequipment.

FLOOR SPACE
Standardmachine................................... 95 x 127 1/2

APPROXIMATE WEIGHTS DATA
Net weight.........................................18,500 lbs.

EQUIPPED WITH
Thru-feed 10” dresser.
Hydraulic grinding wheel dresser.
Hydraulic regulating wheeldresser.
Gib/gib slides assembly.
Hydraulics in base.
Attached electrical.
Machine mount panel.

Specifications are deemed accurate, however, subjectto verification or prior sale.
