Used 1973 CINCINNATI #230-10 | GRINDERS, CENTERLESS

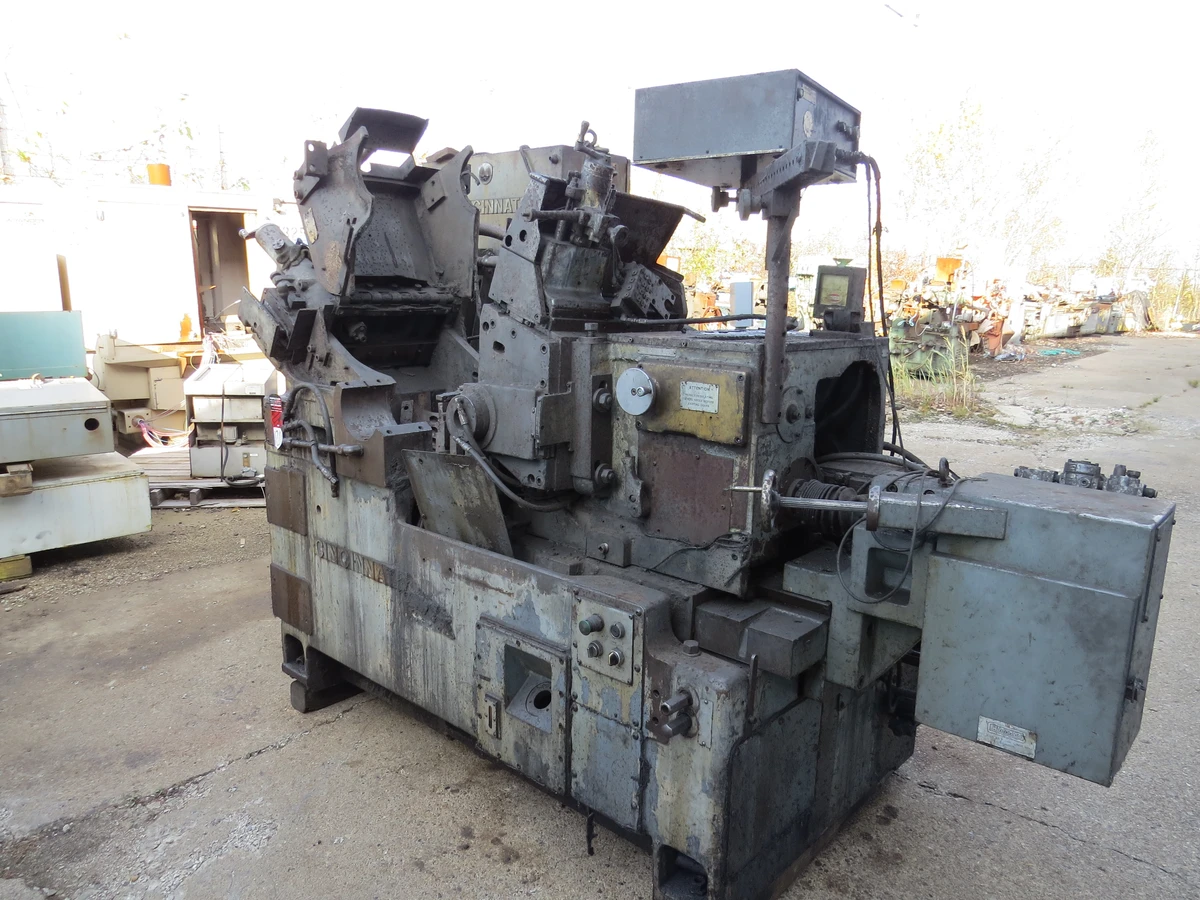

                                                                                                     230 10 CINCINNATI TWIN GRIP GRINDER

                                                                                                         S/N 350800073-0005     YEAR: 1973

STANDARD CATALOG SPECIFICATIONS

CAPACITY
Standard thru feed & infeed work rests......... 1/4" to 4" dia.

WHEELS
Grinding wheel............ widths up to 10", 12" hole   24" dia.
Regulating wheel.......... widths up to 10", 5" hole w/2" C.B.
in back. 1 1/2" C.B. in front   12" dia.

DRIVE
Grinding wheel drive........................... 30 HP
Regulating wheel drive motor................... 1 1/2 HP

REGULATING WHEEL SPEEDS
Number......................................... infinite
Range.......................................... 11 to 310 RPM

SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed
hand wheel graduated in........................ .000050"

CUTTING FLUID EQUIPMENT
Individually motor driven cutting fluid pump
capacity....................................... 50 gal/min.
Cutting fluid tank capacity.................... 150 gallons

WHEEL TRUING EQUIPMENT
Grinding wheel   Hydraulic wheel profile diamond truing unit.
Regulating wheel   Hydraulic profile regulating wheel truing unit.
Diamonds are not included as standard equipment.

FLOOR SPACE
Standard machine................................... 95" x 127 1/2"

APPROXIMATE WEIGHTS & DATA
Net weight......................................... 13,200 lbs.

EQUIPPED WITH
10” Thrufeed complete workrest.
Standard gear box.
Airtronics infeed. (cylinder assist)
Gib / gib slides.
Internal hydraulics.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
