Used 1968 CINCINNATI #340-20 DE | GRINDERS, CENTERLESS

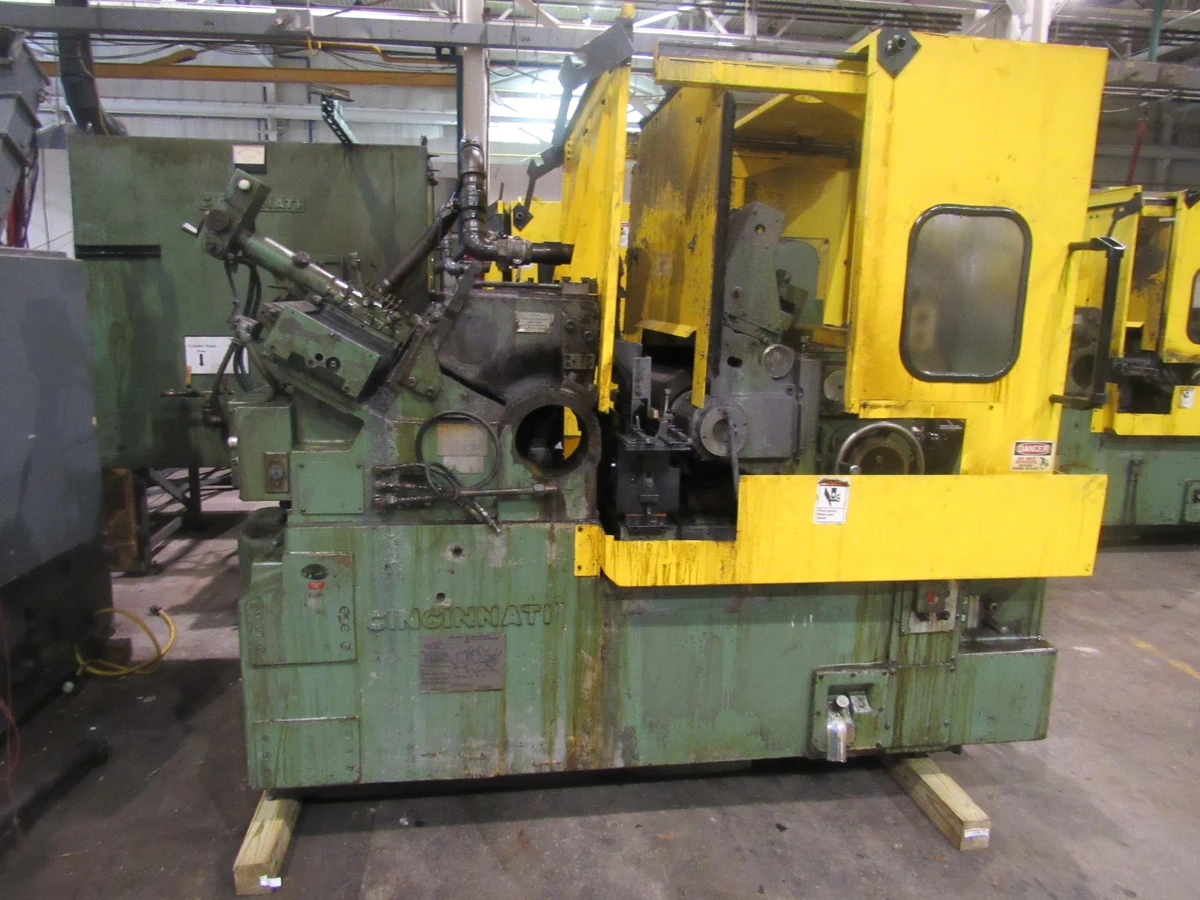

                                                                                                    340 20 CINCINNATI TWIN GRIP CENTERLESS GRINDER

                                                                                                              S/N 350520H5U-0017       YEAR: 1968

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Work rest bar grinding fixtures are not
          included as standard equipment.)
Standard thru feed and infeed work rests...... 1/2" 3" dia.
Maximum work diameter......................... 6"
(Depending on which work rest is ordered)

WHEELS (Not included as standard equipment.)

Grinding Wheel                 Regulating Wheel
12" Hole                       6" Hole
20" Width only                 20" Width only
24" Maximum diameter           14" Maximum diameter
16" Minimum diameter           10 1/4" Minimum diameter

GRINDING WHEEL SPINDLE
High grade alloy steel, heat treated, titanium dioxide coated & ground.  Filmatic bearings self adjusting for variations in load with plain thrust bearings in center.  Automatic circulating lubrication under pressure.

REGULATING WHEEL SPINDLE
High grade alloy steel, heat treated, titanium dioxide coated and ground.  Two piece bronze front and rear bearings; anti friction radial and thrust bearing on end.  Automatic pressure lubrication.

REGULATING WHEEL SPEEDS
     Number: Infinite
     Range: 60 cycle: 11 300 RPM, 50 cycle: 12 to 315 RPM
 Low range: 60 cycle: 11 56 RPM, 50 cycle: 12 to 59 RPM
High range: 60 cycle: 56 300 RPM, 50 cycle: 59 to 315 RPM

GRINDING WHEEL DRIVE
Enclosed motor on end of machine.............. 40 HP
Constant speed:  N.E.M.A. dim., 50 or 60 cycle, 3 phase,
208 or 575 single; 230/460 dual voltage A.C. drives grinding
wheel only.
Power transmission............................ 8 V belts

REGULATING WHEEL DRIVE
Motor mounted on upper slide    60 cycle: 2 HP @ 1200 RPM
                                50 cycle: 2 HP @ 1500 RPM
Constant speed;  N.E.M.A. dim., 50 or 60 cycle, 3 phase,
208 or 575 single; 230/460 dual voltage A.C.
Power transmission............................ V belt & chain
Speed changes:........ Variable pitch sheaves and gear shift

CUTTING FLUID EQUIPMENT
Individual motor driven cutting fluid pump capacity 30GPM
Cutting fluid tank capacity................... 75 gallons

SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed hand wheel graduated in fifty millionths of an inch.
Thru feed push button compensation fine and coarse feed.

WHEEL TRUING
Independent truing units for each wheel.  Hydraulic diamond truing for grinding and regulating wheel.  Diamond not included as standard equipment.
(Profile both sides.)

DIMENSIONS
Floor space............................. 114 x 158-1/16"
Weight.................................. 23,500 lbs. approximate

EQUIPPED WITH
ADA Hydraulic GWD.
GCH Partial enclosure.
(5) Bolt reg head.
6” Reg spindle.
Single handwheel.
Gib/Gib slides.
Manual hydraulic RWD. (Swivel Cam Bracket)
Standard comp unit.
Impact hammer.
Standard drive box.
Attached hydraulics.
Attached electrical.

Specifications are deemed accurate, however, subject to verification or prior sale.
