CINCINNATI CINCO-15 DR W/24" 350200079-0029

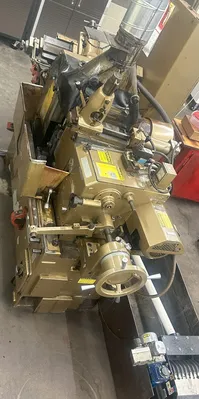

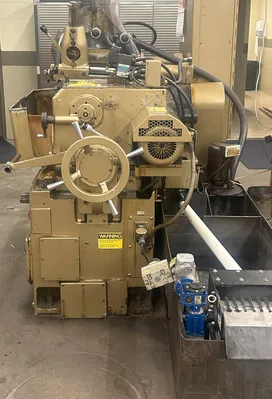

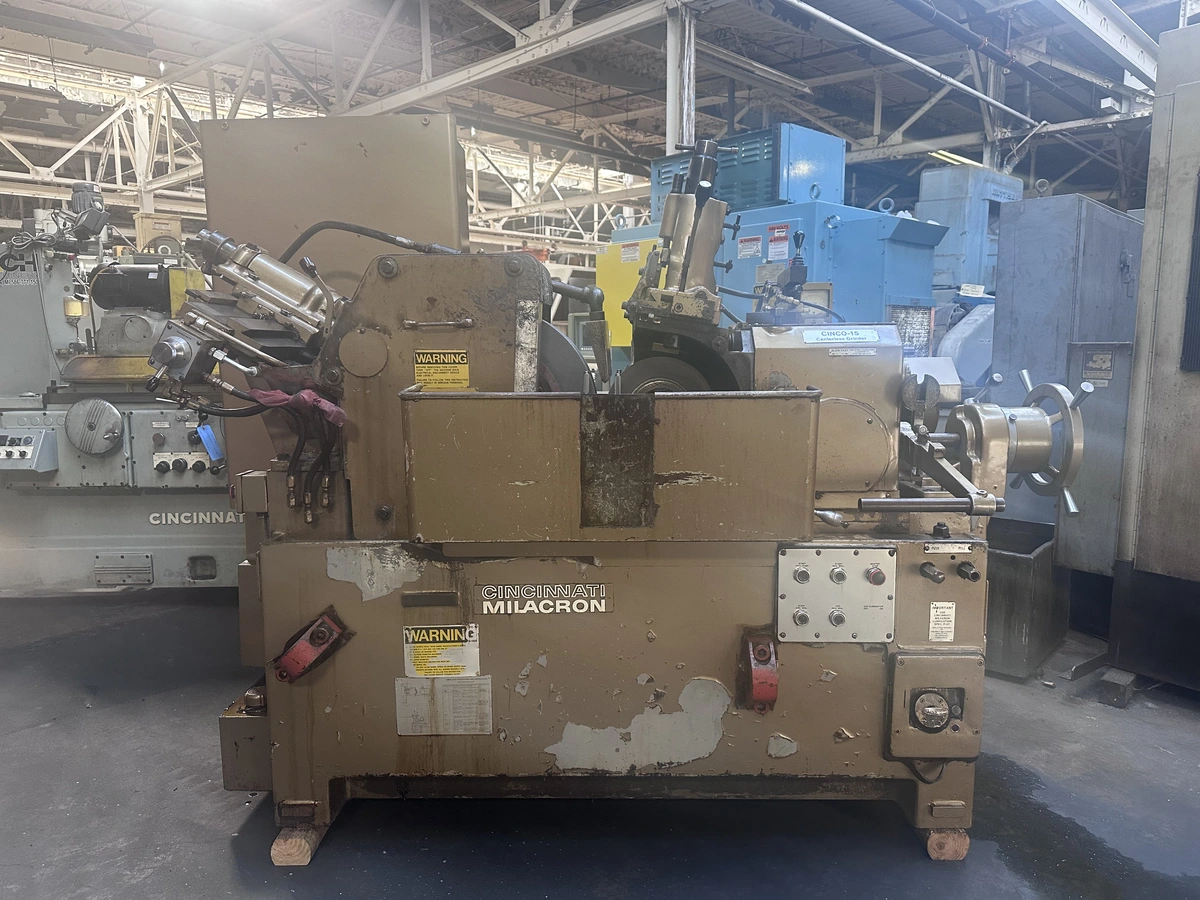

CINCINNATI CINCO‑15 24” CENTERLESS GRINDER

S/N 350200079-0029 YEAR: 1979

STANDARD CATALOG SPECIFICATIONS
Standard thru‑feed rest.............3 dia.
Max. work diameter (Depending onwhich work rest is
ordered)...........................................4 3/4

WHEELS
Grinding Wheel Widths: Up to 8, 12 Hole
Maximum diameter:......... 24 Minimum diameter:.. 15
Regulating Wheel Widths: Up to 8, 5 Hole
With 1 1/2 C.B. Back
Maximum diameter:......... 12 Minimum diameter:.. 9 3/4

POWER REQUIREMENTS
Grinding wheel drive motor (1500or 1800 RPM)...... 15 HP
Regulating wheel drive motor(1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or1800 RPM)............ 1 HP
Cutting fluid pumpmotor........................... 1/4 HP

REGULATING WHEEL SPEEDS
Number.............................................Infinite
Range..............................................15 to 300 RPM

CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................30 Gal. min.
Cutting fluid tankcapacity........................ 65 Gal. min.

SIZING ADJUSTMENT
Accurate infeed adjustment byhand wheel. With fine adjustment pull down handle.
(Pivot type) graduatedin.......................... .001

WHEEL TRUING EQUIPMENT
Hydraulic profile diamond forgrinding wheel.
PRIVATE Hydraulic profile screw type diamond truing forregulating wheel.tc�\l 1 Hydraulic profile screw type diamond truing for regulatingwheel.
*(Diamonds not included as standard equipment.)

Note: Rebuilt regulating wheel head from GCH Tool group.

Specifications are deemed accurate, however, subjectto verification or prior sale.
