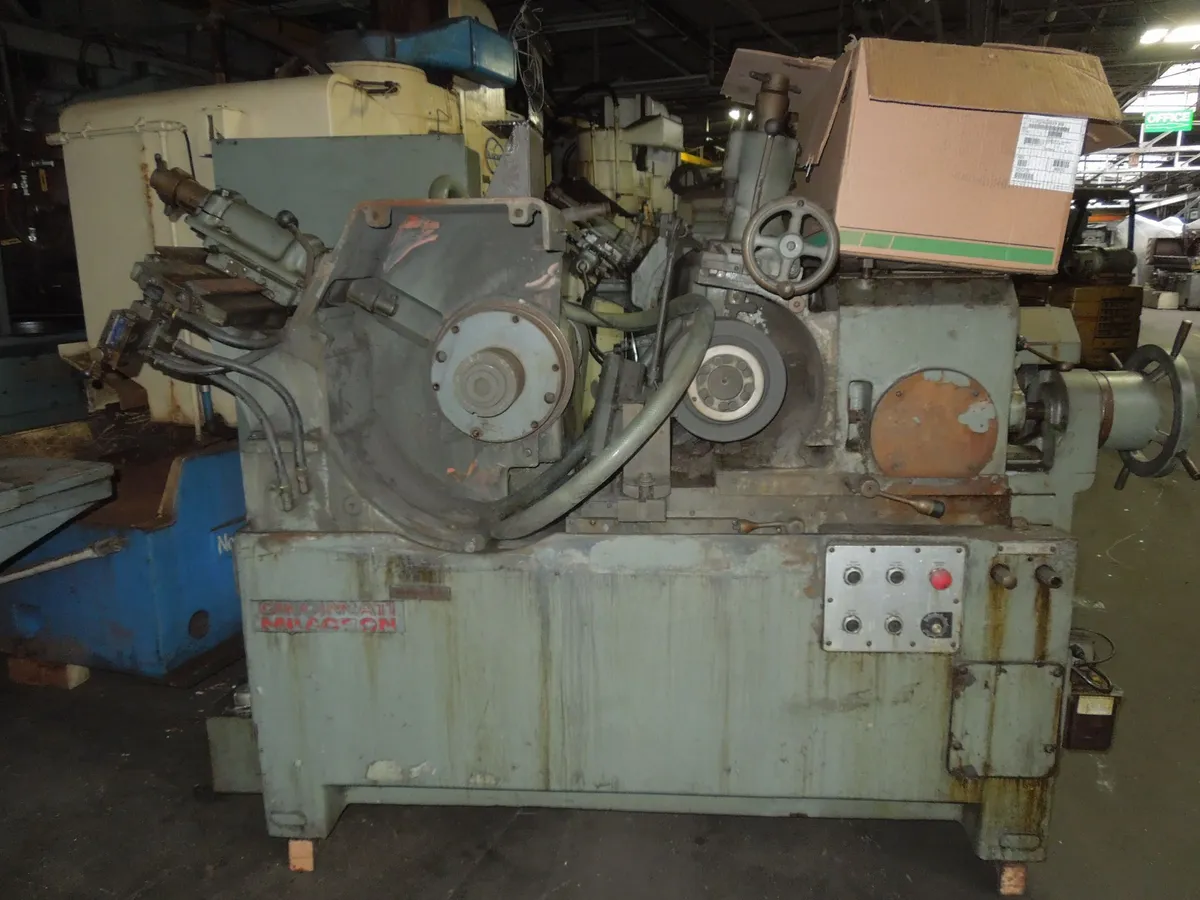

CINCINNATI CINCO-15 CENTERLESS GRINDER

CINCINNATI CINCO‑15 CENTERLESS GRINDER
S/N 350200077-0031 Year: 1977

STANDARD CATALOG SPECIFICATIONS
Standard thru‑feed infeed work rests............. 3 dia.
Max. work diameter (Depending on which work rest is
ordered)...................................................4 3/4

WHEELS
Grinding Wheel Widths: Up to 8, 12 Hole
Maximum diameter:......... 24 Minimum diameter:.. 15
Regulating Wheel Widths: Up to 8, 5 Hole
With 1 1/2 C.B. Back
Maximum diameter:......... 12 Minimum diameter:.. 9 3/4

POWER REQUIREMENTS
Grinding wheel drive motor (1500or 1800 RPM)....... 15 HP
Regulating wheel drive motor(1000 or 1200 RPM)..... 1 HP
Hydraulic pump motor (1500 or1800 RPM)............... 1 HP
Cutting fluid pump motor......................................1/4 HP

REGULATING WHEEL SPEEDS
Number......................................................Infinite
Range..............................................15 to 300 RPM

CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................30 Gal. min.
Cutting fluid tank capacity......................... 65 Gal. min.
SIZING ADJUSTMENT
Accurate infeed adjustment by hand wheel.
(Pivot type) graduated in.......................... .001

WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
PRIVATE Hydraulic profile screw type diamond truing for regulating wheel.tc�\l 1 Hydraulic profile screw type diamond truing for regulatingwheel.
*(Diamonds not included as standard equipment.)

EQUIPED WITH
8” Infeed work rest.
Profile truing units.
Hydraulic traverse on grinding wheel truing unit.
Manual traverse for the reg truing.

Specifications are deemed accurate, however, subject to verification or prior sale.
