Used 1977 CINCINNATI CINCO 15 | GRINDERS, CENTERLESS

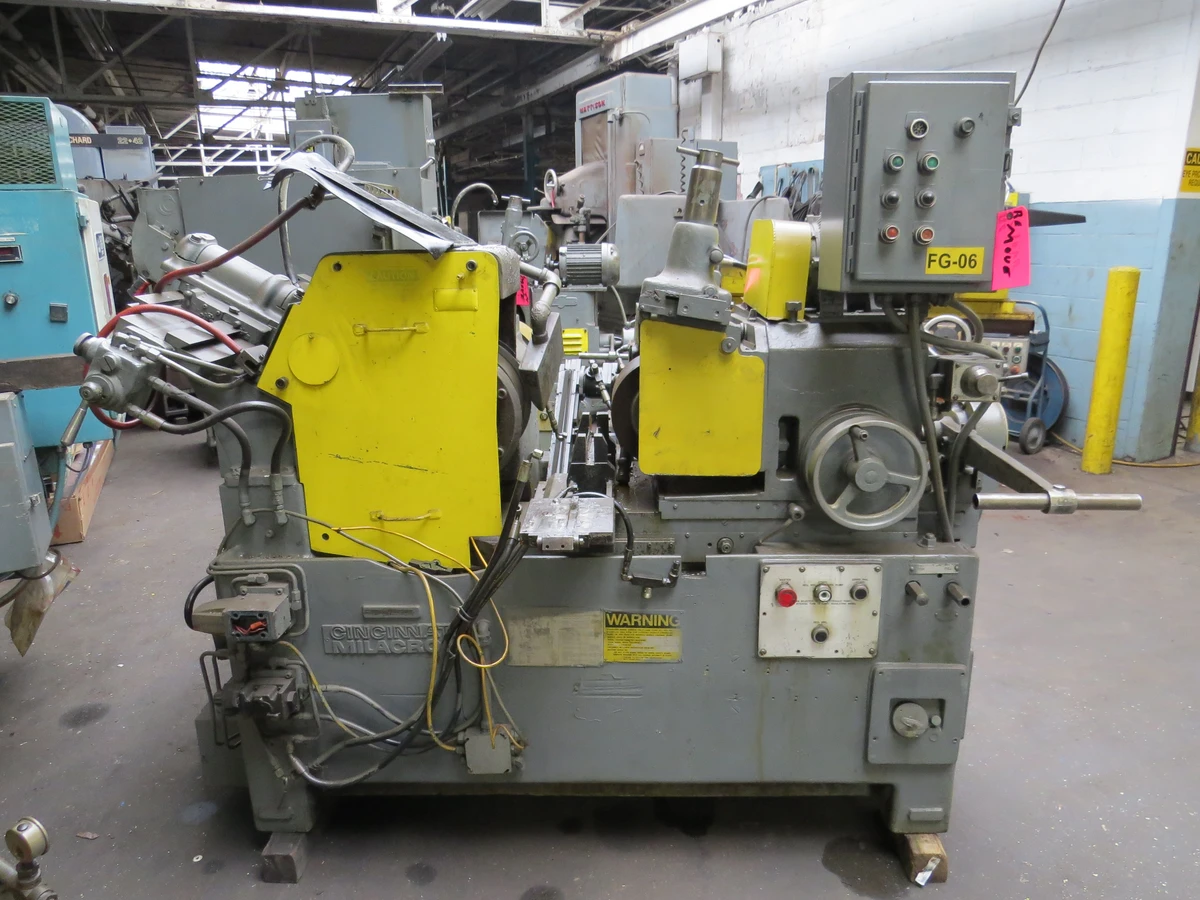

                                                                                                                   CINCINNATI CINCO 15 CENTERLESS GRINDER

                                                                                                                         S/N 350200077-0029      YEAR: 1977

STANDARD CATALOG SPECIFICATIONS
Standard thru feed & infeed work rests............. 3" dia.
Max. work diameter (Depending on which work rest is
ordered)........................................... 4 3/4"

WHEELS
Grinding Wheel Widths: Up to 8", 12" Hole
Maximum diameter:......... 20/24"  Minimum diameter:.. 15"
Regulating Wheel Widths: Up to 8", 5" Hole
With 1 1/2" C.B. Back
Maximum diameter:......... 12"  Minimum diameter:.. 9 3/4"

POWER REQUIREMENTS
Grinding wheel drive motor (1500 or 1800 RPM)...... 15 HP
Regulating wheel drive motor (1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or 1800 RPM)............ 1 HP
Cutting fluid pump motor........................... 1/4 HP

REGULATING WHEEL SPEEDS
Number............................................. Infinite
Range.............................................. 15 to 300 RPM

CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................ 30 Gal. min.
Cutting fluid tank capacity........................ 65 Gal. min.

SIZING ADJUSTMENT
Accurate infeed adjustment by hand wheel.
(Pivot type) graduated in.......................... .001"

WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
Hydraulic profile screw type diamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)

EQUIPPED WITH
Hydraulic profile grinding wheel dresser.
Hydraulic straight reg wheel dresser.
Hand pull down lever.
Variable speed reg drive.

Specifications are deemed accurate, however, subject to verification or prior sale.
