Used CINCINNATI #107-4 | GRINDERS, CENTERLESS

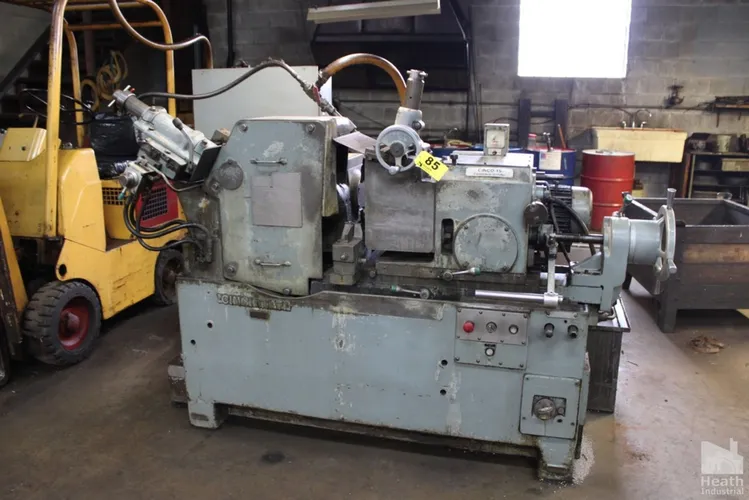

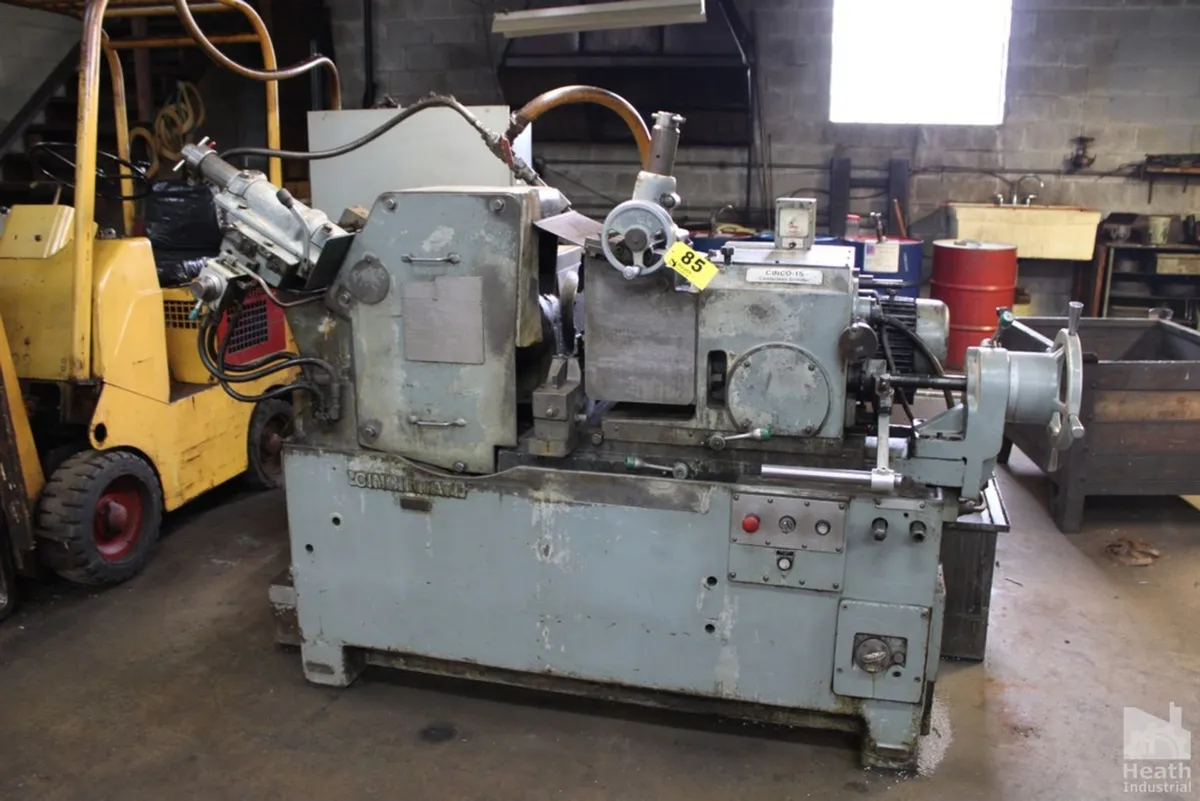

                                                                                                    CINCINNATI CINCO 15 CENTERLESS GRINDER

                                                                                                              S/N 35020005Y-23      Year: 1971

STANDARD CATALOG SPECIFICATIONS
Standard thru feed & infeed work rests............. 3" dia.
Max. work diameter (Depending on which work rest is
ordered)........................................... 4 3/4"

WHEELS
Grinding Wheel Widths: Up to 8", 12" Hole
Maximum diameter:......... 24"  Minimum diameter:.. 15"
Regulating Wheel Widths: Up to 8", 5" Hole
With 1 1/2" C.B. Back
Maximum diameter:......... 14"  Minimum diameter:.. 9 3/4"

POWER REQUIREMENTS
Grinding wheel drive motor (1500 or 1800 RPM)...... 15 HP
Regulating wheel drive motor (1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or 1800 RPM)............ 1 HP
Cutting fluid pump motor........................... 1/4 HP

REGULATING WHEEL SPEEDS
Number............................................. Infinite
Range.............................................. 15 to 300 RPM

CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................ 30 Gal. min.
Cutting fluid tank capacity........................ 65 Gal. min.

SIZING ADJUSTMENT
Accurate infeed adjustment by hand wheel.
(Pivot type) graduated in.......................... .001"

WHEEL TRUING EQUIPMENT
Hydraulic profile diamond for grinding wheel.
Hand diamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)

Specifications are deemed accurate, however, subject to verification or prior sale.
