CINCINNATI CINCO-15 DR W/24" 3502005V-0060

CINCINNATI CINCO‑15 CENTERLESS GRINDER

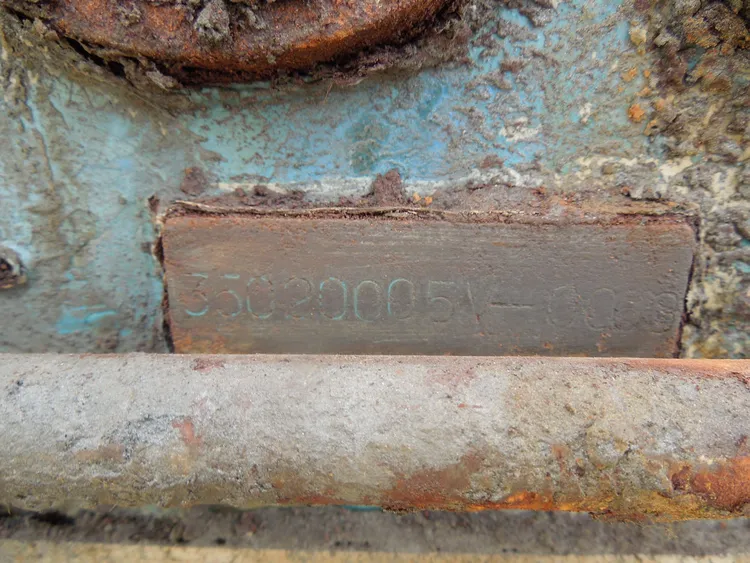

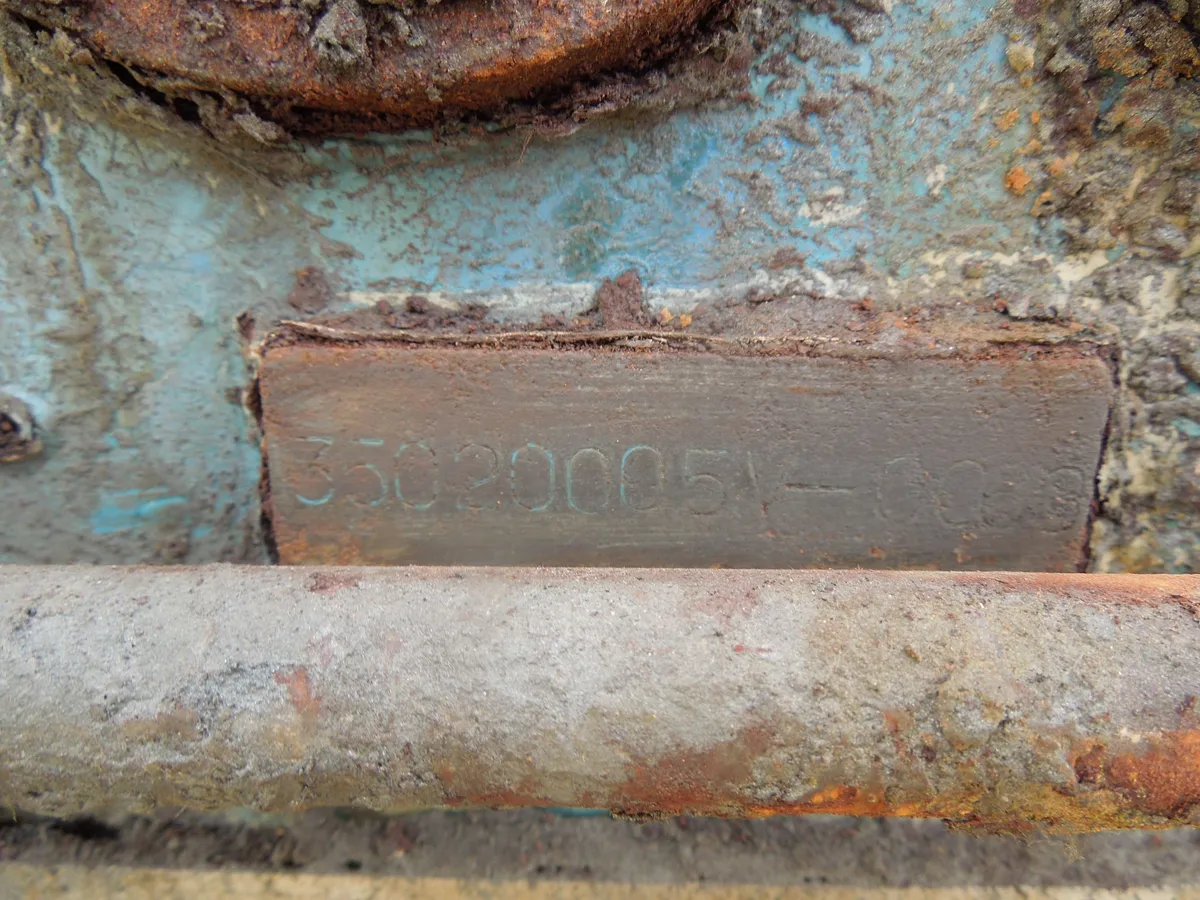

S/N 35020005V-0060 Year:1969

STANDARD CATALOG SPECIFICATIONS
Standard thru‑feed infeedwork rests............. 3 dia.
Max. work diameter (Depending onwhich work rest is
ordered)...........................................4 3/4

WHEELS
Grinding Wheel Widths: Up to 8, 12 Hole
Maximum diameter:......... 24 Minimum diameter:.. 15
Regulating Wheel Widths: Up to 8, 5 Hole
With 1 1/2 C.B. Back
Maximum diameter:......... 14 Minimum diameter:.. 9 3/4

POWER REQUIREMENTS
Grinding wheel drive motor (1500or 1800 RPM)...... 15 HP
Regulating wheel drive motor(1000 or 1200 RPM).... 1 HP
Hydraulic pump motor (1500 or1800 RPM)............ 1 HP
Cutting fluid pumpmotor........................... 1/4 HP

REGULATING WHEEL SPEEDS
Number.............................................Infinite
Range..............................................15 to 300 RPM

CUTTING FLUID EQUIPMENT
Individually motor driven.
Cutting fluid pump capacity........................30 Gal. min.
Cutting fluid tankcapacity........................ 65 Gal. min.

SIZING ADJUSTMENT
Accurate infeed adjustment byhand wheel.
(Pivot type) graduatedin.......................... .001

WHEEL TRUING EQUIPMENT
Hydraulic profile diamond forgrinding wheel.
PRIVATE Hydraulic profile diamond truing for regulating wheel.tc� \l 1 Hydraulic profile screw typediamond truing for regulating wheel.
*(Diamonds not included as standard equipment.)

Specifications are deemed accurate, however, subjectto verification or prior sale.
