CINCINNATI #2 OM 2M2H5HN-20

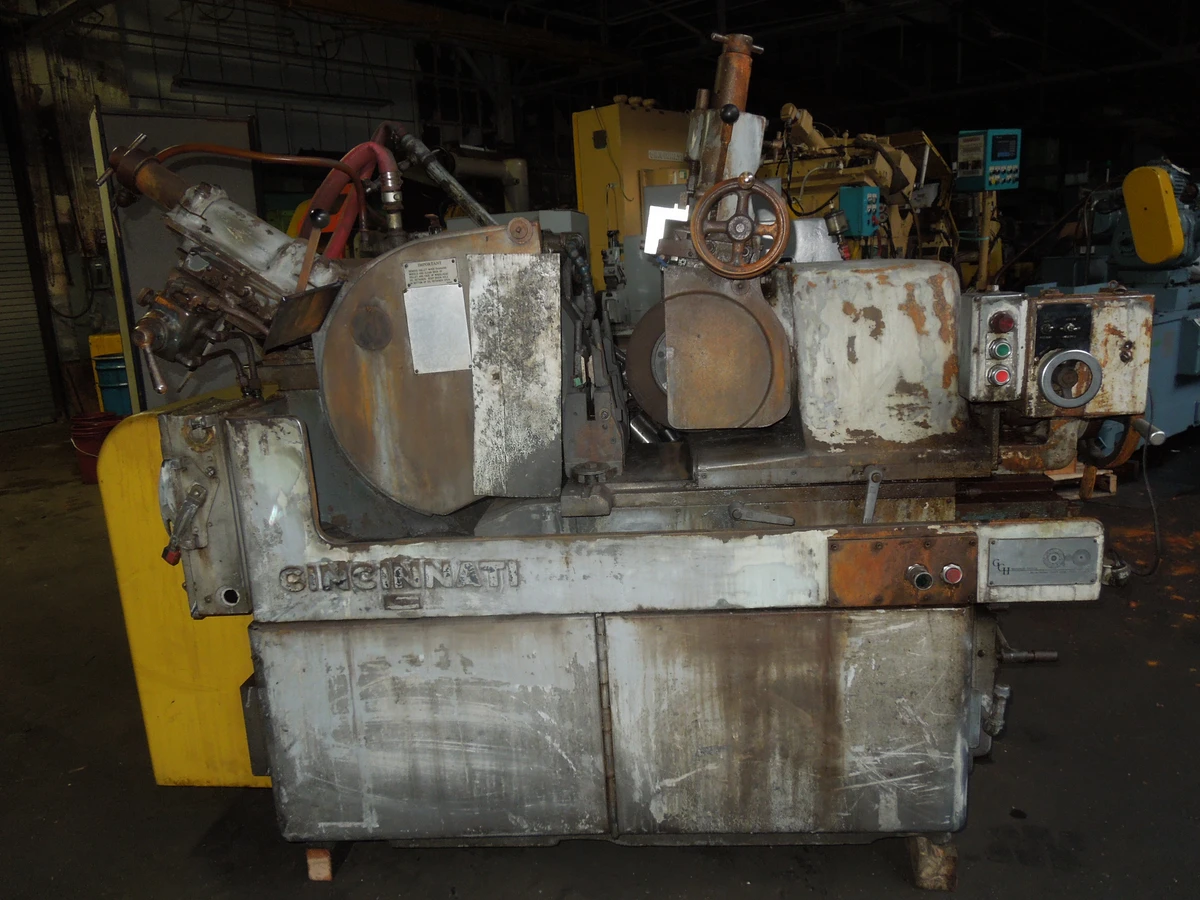

#2 OM CINCINNATI CENTERLESS GRINDER
S/N 2M2H5HN-20 Year: 1959

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest......................1/16 to 3 1/2 dia.
Low thru feed workrest................. 2 to 4 3/4 dia.
Bar work................................ 1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or8 Hole............ 12
Maximum diameter...................................20
Minimum diameter................................... 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or8 Hole............ 5
Maximum diameter................................... 12
Minimum diameter...................................9

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid......................................1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................7,000 lbs.
PRIVATE tc� \l 1
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Hand contour on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Cincinnati lube system.

Specifications are deemed accurate, however, subject to verification or prior sale.
