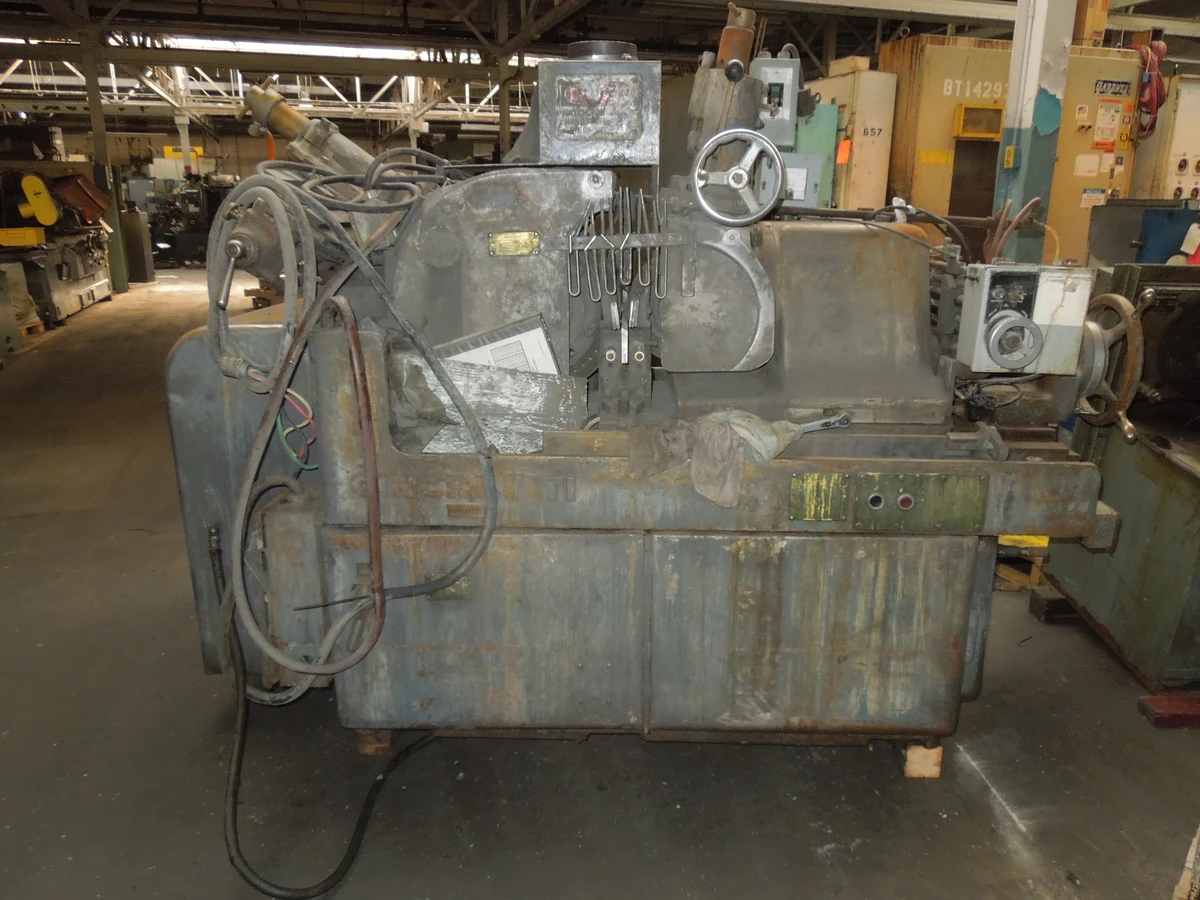

CINCINNATI #2 OM 2M2H1Z-325

#2 OM CINCINNATICENTERLESS GRINDER
S/N 2M2H1Z-325 Year: 1952

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest......................1/16 to 3 1/2 dia.
Low thru feed work rest................... 2 to 4 3/4 dia.
Barwork............................... 1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............. 12
Maximum diameter...................................20
Minimum diameter.................................. 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............. 5
Maximum diameter................................ 12
Minimum diameter...................................9

MOTOR DRIVES
Grinding wheel.......................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid.............................................1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................6,400 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw-type contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
8” Thru feed work rest.
GWD Hyd / Profile.
RWD Hand / Profile.
