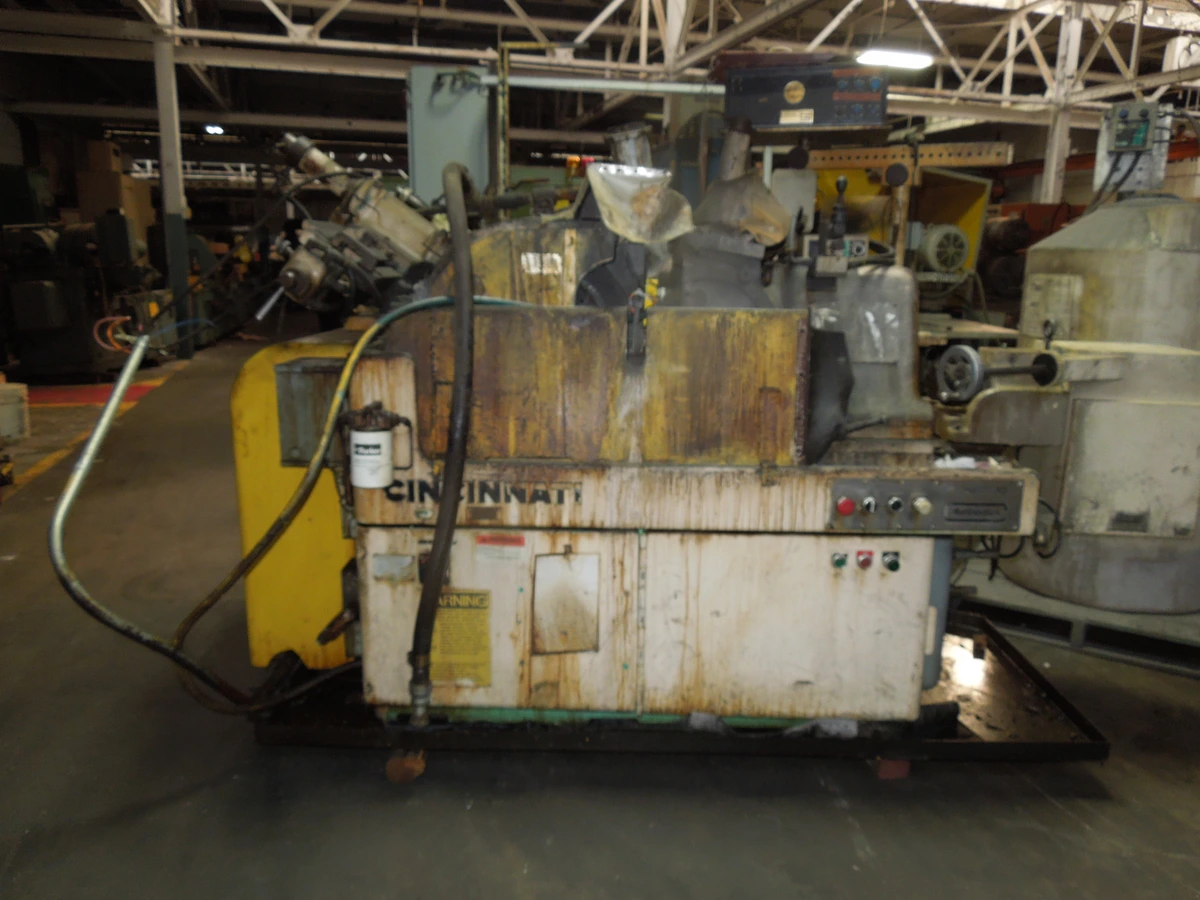

CINCINNATI #2 OM 2M2H1W-374

#2 OM CINCINNATICENTERLESS GRINDER

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard workrest................................. 1/16 to 3 1/2 dia.
Low thru feed workrest............................... 2 to 4 3/4 dia.
Barwork..........................................1/8 to 2 dia. 18 long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 12
Maximum diameter................................... 20
Minimum diameter................................... 14

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8 Hole............ 5
Maximum diameter................................... 12
Minimum diameter................................... 9

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel...................................1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP

OVERALL DIMENSIONS
Floor space:...................................... 53 x 86
Weight.............................................7,000 lbs.

PRIVATE tc� \l 1
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Hydraulic contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.

Specifications are deemed accurate, however, subject to verification or prior sale.
