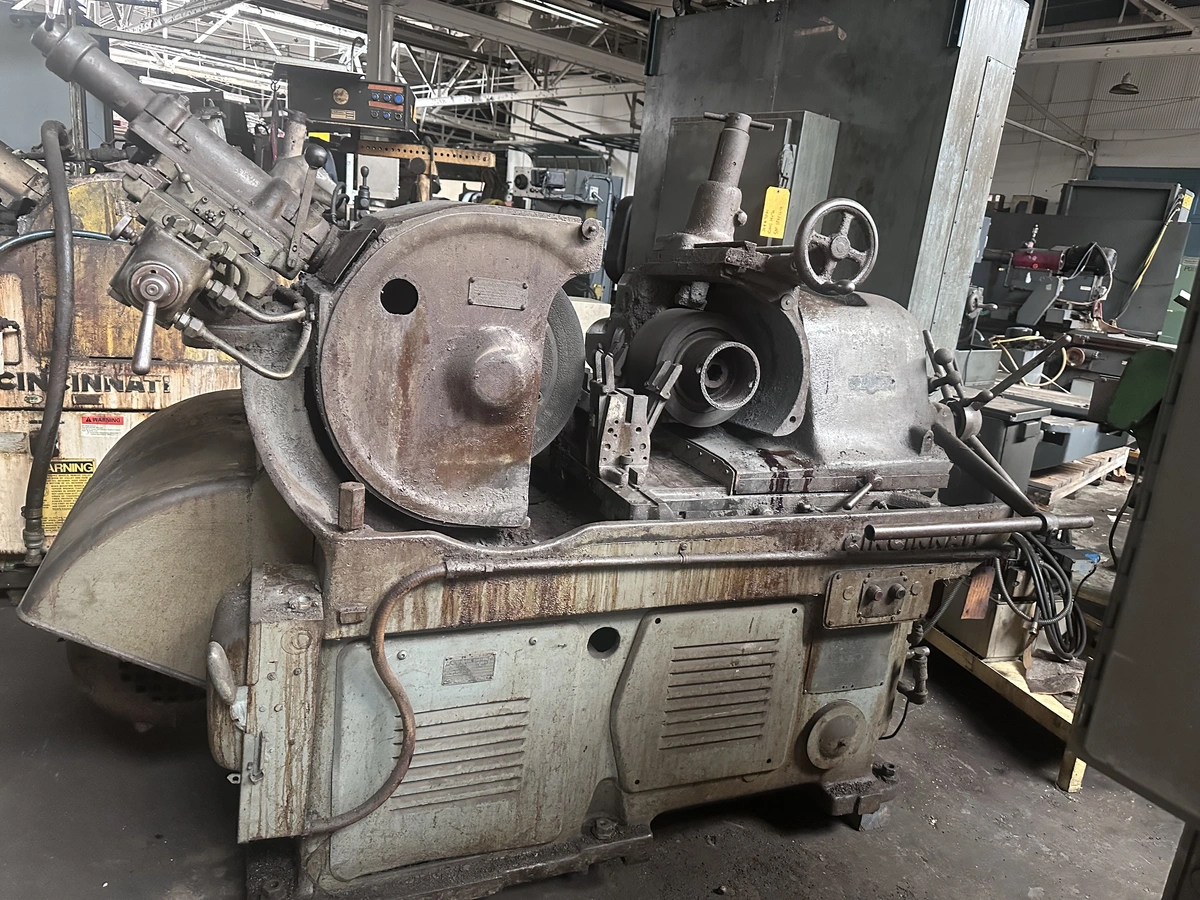

CINCINNATI #2 EA 2M2H1R-217

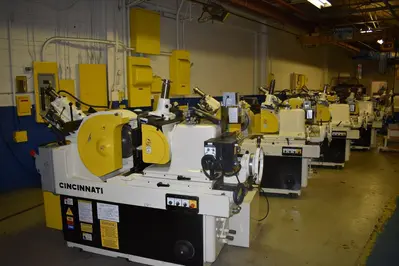

#2EA CINCINNATICENTERLESS GRINDERS

STANDARD CATALOG SPECIFICATIONS

CAPACITY: (Depending on which work rest is ordered -
notincluded in price)
Standard work rest....................... 1/16 to3 1/2 diameter
Low thru-feed work rest.................. 2 to 43/4 diameter
Bar work......(18' Long)................. 1/8 to2 diameter

GRINDINGWHEEL (Not supplied)
4, 6, or 8 Width - 12 Hole
20 Maximum diameter
14 Minimum diameter
Speed - 1200 RPM

REGULATINGWHEEL (Not supplied)
4, 6, or 8 Width - 5 Hole
12 Maximum diameter
9 Minimum diameter
Range of speeds - 12 to 300 RPM

MOTORDRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x86
Weight................................... 6,400 lbs.

EQUIPMENT FEATURES
Filmatic bearings
Hydraulic contour truing on grinding wheel
Screw type truing on regulating wheel
Grinding wheel mount for straight side wheel
Regulating wheel mount for straight side wheel
Coolant pump and tank

Cam-out regulating wheel truing attachmentavailable!

Specifications are deemed accurate, however, subject to verification orprior sale.
