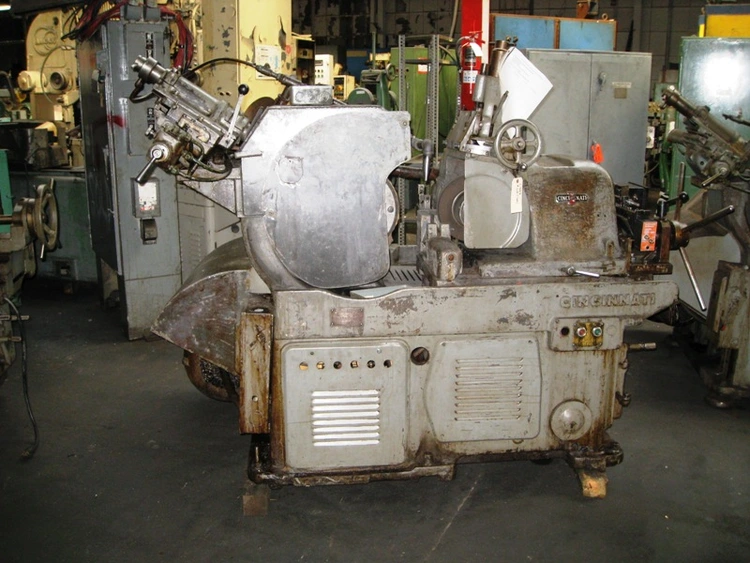

#2 EA CINCINNATI CENTERLESS GRINDERS

#2 EACINCINNATICENTERLESS GRINDERS

S/N 2M2H1H-394

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered -
not included in price)
Standard work rest....................... 1/16 to 3 1/2 diameter
Low thru-feed work rest.................. 2 to 4 3/4 diameter
Bar work......(18'Long)................. 1/8 to 2 diameter

GRINDING WHEEL(Not supplied)
4, 6, or 8 Width - 12 Hole
24 Maximum diameter
14 Minimum diameter
Speed - 1200 RPM

REGULATING WHEEL (Not supplied)
4, 6, or 8 Width - 5 Hole
12 Maximum diameter
9 Minimum diameter
Range of speeds - 12 to 300 RPM

MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x 86
Weight...................................6,400 lbs.

EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw type contour truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Coolant pump and tank.

Specifications are deemed accurate, however, subject to verification or prior sale.
