NORTON 6x18 CTU 28919

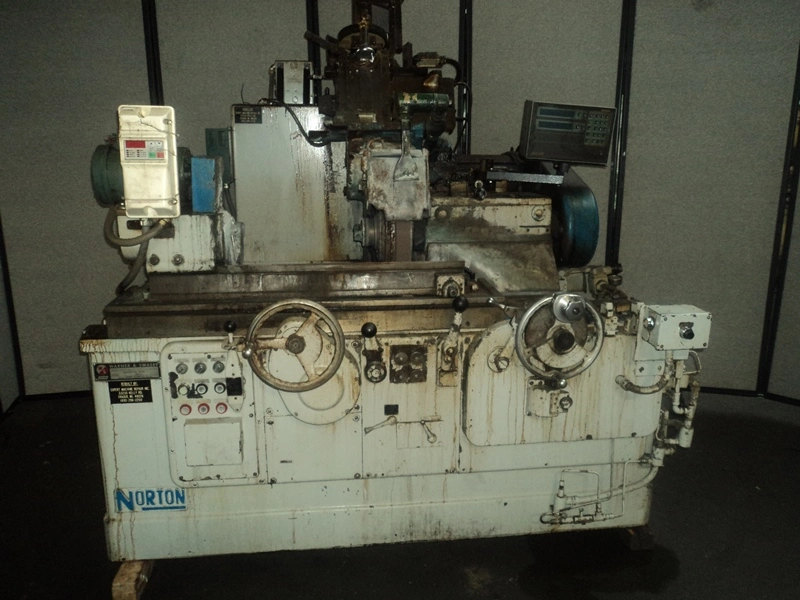

6 x 18 NORTON CTU PLAIN CYLINDRICAL GRINDER
S/N 28919 Year:1974

STANDARD CATALOG SPECIFICATIONS
Maximum swing..................................... 6 31/32
Maximum distance between centers.................. 18

TABLE TRAVERSE
Number of speeds.................................. Infinite
Table speed range, perm in........................ 2 to 240

SWIVEL TABLE
Swivel table graduated-degrees included
angle:............................................25 21 degrees
Swivel table graduated-taper per foot............. 5 1/4 to 4 1/2

BASE WAYS
Width of flat way................................. 1 5/8
Width of V-way(projected)........................ 1 5/8

WHEEL SLIDE WAYS
Width of flat way................................. 2 3/4
Width of V-way(projected)........................ 2 3/4

OIL RESERVOIR CAPACITY
Standard inside hydraulic reservoir............... 20 gallons
Outside hydraulic reservoir....................... 30 gallons
Ways lubricant reservoir..........................1 1/3 gallons

WHEEL SPINDLE
Large bearing(LH)............................ 2 5/8 x 4 3/4
Small bearing(RH)............................ 2 3/8 x 4 3/4
Spindle speeds................................ 1620 and 1890 RPM
Reciprocation, when supplied.................. 0 to 1/4

WEIGHT
Net weight including motor.................... 9,000 lbs. approx.

EQUIPMENT FEATURES
Gear rack table.
24 x 3 Grinding wheel.
Above the wheel auto-truing.
Coolant in base.
Variable speed head stock.
SBS balancer on grinding wheel spindle.
Push button plunge.

Specifications are deemed accurate, however, subject to verification or prior sale.
