LANDIS 4H 28847

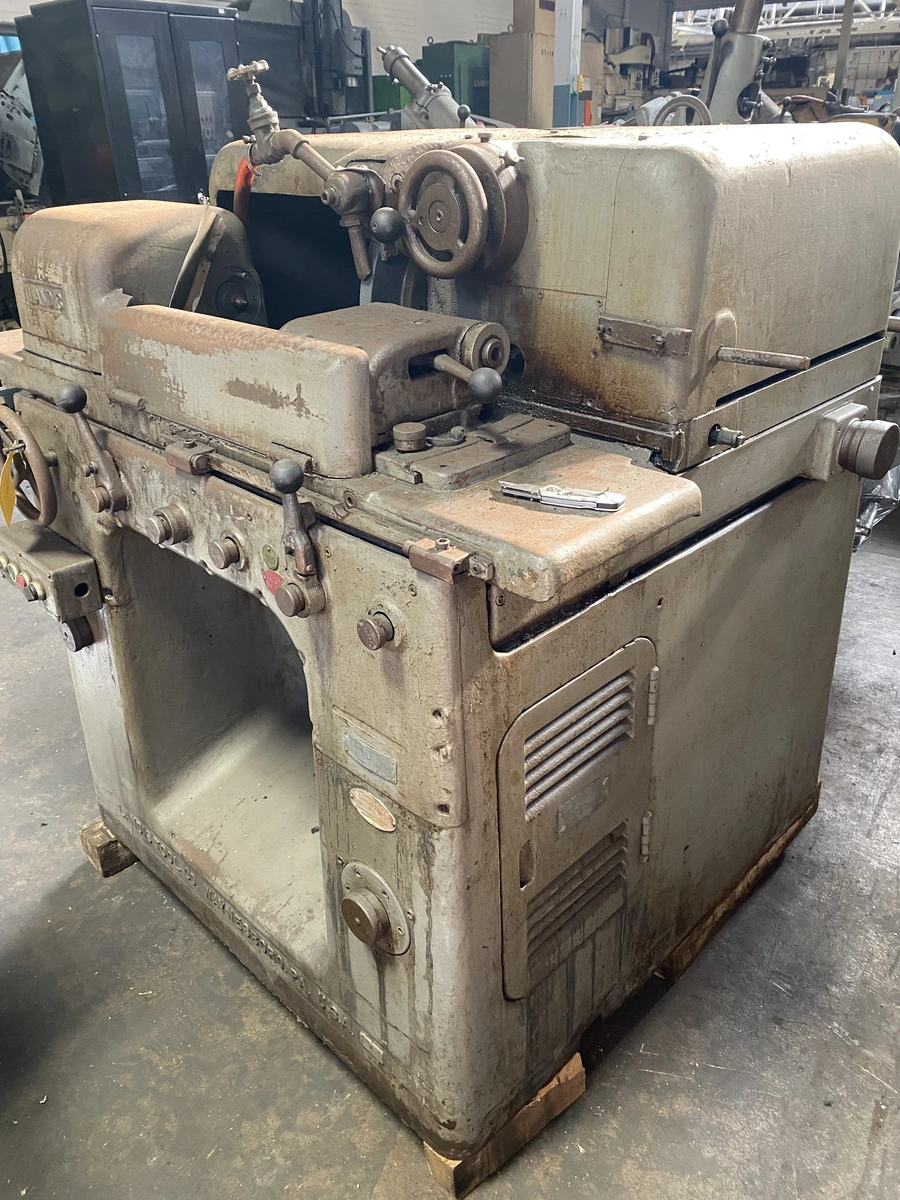

4”x 12” LANDIS MODEL 4-H PLAIN HYDRAULIC CYLINDRICAL GRINDER
S/N 28847

STANDARD SPECIFICATIONS
Model4-H.
Fully automatic.
431/32” Max. swing of work.
12”Length between centers.
16”O.D x 2” width x 8” hole grinding wheel.
Manual tail stock with dresser mount.
200-900Work spindle RPM – variable.
3”– 120” Traverse speed I.P.M.
3H.P. Main motor 220/440/3/60.
D.C.work head.

EQUIPPED WITH
Hydraulic table travel.
Wheel mount.
Coolant in base.
D.C. work head.
Kneehole style base.
All trip dogs.
Attached electrical.
Tailstock dresser.

Approximate weight – 4,000 lbs.
